Metric Deep Groove Open Bearings K025-K360CP0 Series ( d: 25mm-360mm D: 41mm-400mm)

The Metric Size Ball Bearing is a single row bearing with deep groove ball structure, which is able to carry larger radial load and can be modified as a full comoplement ball bearing, three size of thickness are available: 8mm, 13mm and 20mm.

Send Inquiry

Metric Deep Groove Open Bearings K025-K360CP0 Series ( d: 25mm-360mm D: 41mm-400mm)

Metric Size Ball Bearings Type C (deep groove ball structure) can carry larger radial load. The design and installation for application with such bearing is easy, and the deep groove ball structure can also be assembled into a full complement ball bearing. The bearing is mainly used on mining machinery, equipment and precision instruments, etc. Three size of thickness are available :8mm 13mm 20mm.

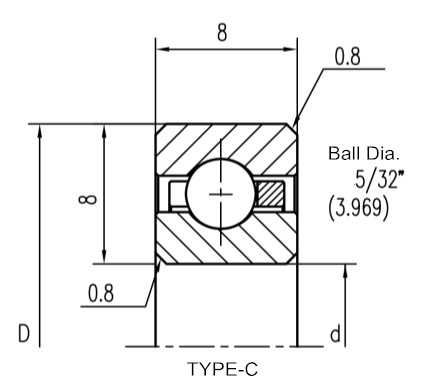

Part No	Dimension（mm)			Basic Cap（kg)		Weight	Interchange
Part No	d	D	H	Cor	Cr	Kg	KAYDON
NK02508CP0	25	41	8	303	255	0.06	K02508CP0
NK05008CP0	50	66	8	556	350	0.08	K05008CP0
NK06008CP0	60	76	8	656	384	0.09	K06008CP0
NK07008CP0	70	86	8	758	417	0.10	K07008CP0
NK08008CP0	80	96	8	859	448	0.11	K08008CP0
NK09008CP0	90	106	8	959	478	0.13	K09008CP0
NK10008CP0	100	116	8	1061	507	0.14	K10008CP0
NK11008CP0	110	126	8	1162	534	0.15	K11008CP0
NK12008CP0	120	136	8	1262	561	0.16	K12008CP0
NK13008CP0	130	146	8	1364	588	0.18	K13008CP0
NK14008CP0	140	156	8	1465	613	0.19	K14008CP0
NK15008CP0	150	166	8	1565	638	0.20	K15008CP0
NK16008CP0	160	176	8	1666	662	0.20	K16008CP0
NK17008CP0	170	186	8	1767	686	0.20	K17008CP0
NK18008CP0	180	196	8	1868	709	0.21	K18008CP0
NK19008CP0	190	206	8	1944	725	0.21	K19008CP0
NK20008CP0	200	216	8	2045	748	0.22	K20008CP0
NK25008CP0	250	266	8	2550	853	0.28	K25008CP0
NK30008CP0	300	316	8	3055	949	0.35	K30008CP0
NK32008CP0	320	336	8	3257	985	0.39	K32008CP0
NK34008CP0	340	356	8	3459	1016	0.42	K34008CP0
NK36008CP0	360	376	8	3636	1050	0.46	K36008CP0

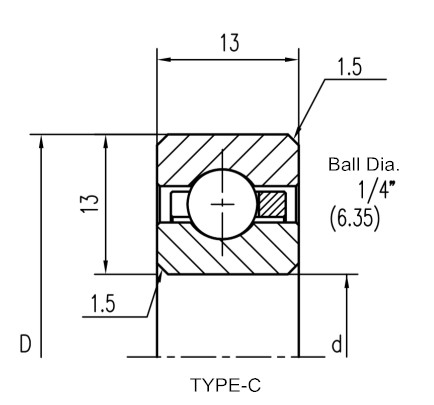

Part No	Dimension（mm)			Radial (kg)		Weight	Interchange
Part No	d	D	H	Cor	Cr	Kg	KAYDON
NK02513CP0	25	51	13	517	535	0.11	K02513CP0
NK05013CP0	50	76	13	905	697	0.18	K05013CP0
NK06013CP0	60	86	13	1099	775	0.21	K06013CP0
NK07013CP0	70	96	13	1228	819	0.24	K07013CP0
NK08013CP0	80	106	13	1358	862	0.26	K08013CP0
NK09013CP0	90	116	13	1551	931	0.29	K09013CP0
NK10013CP0	100	126	13	1681	971	0.32	K10013CP0
NK11013CP0	110	136	13	1875	1035	0.35	K11013CP0
NK12013CP0	120	146	13	2004	1073	0.38	K12013CP0
NK13013CP0	130	156	13	2133	1110	0.41	K13013CP0
NK14013CP0	140	166	13	2327	1169	0.44	K14013CP0
NK15013CP0	150	176	13	2456	1204	0.46	K15013CP0
NK16013CP0	160	186	13	2586	1239	0.49	K16013CP0
NK17013CP0	170	196	13	2780	1294	0.52	K17013CP0
NK18013CP0	180	206	13	2909	1327	0.55	K18013CP0
NK19013CP0	190	216	13	3038	1360	0.58	K19013CP0
NK20013CP0	200	226	13	3232	1411	0.61	K20013CP0
NK25013CP0	250	276	13	4008	1598	0.75	K25013CP0
NK30013CP0	300	326	13	4719	1754	0.89	K30013CP0
NK32013CP0	320	346	13	5042	1823	0.95	K32013CP0
NK34013CP0	340	366	13	5365	1889	1.01	K34013CP0
NK36013CP0	360	386	13	5688	1954	1.06	K36013CP0

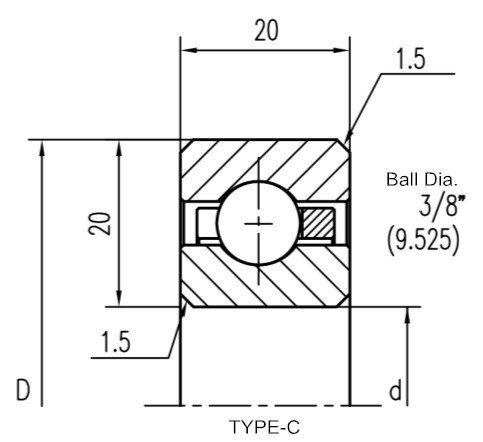

Part No	Dimension（mm)			Radial (kg)		Weight	Interchange
Part No	d	D	H	Cor	Cr	Kg	KAYDON
NK02520CP0	25	65	20	1018	1178	0.34	K02520CP0
NK05020CP0	50	90	20	1600	1410	0.51	K05020CP0
NK06020CP0	60	100	20	1745	1452	0.58	K06020CP0
NK07020CP0	70	110	20	2036	1573	0.65	K07020CP0
NK08020CP0	80	120	20	2181	1617	0.72	K08020CP0
NK09020CP0	90	130	20	2473	1730	0.80	K09020CP0
NK10020CP0	100	140	20	2618	1773	0.86	K10020CP0
NK11020CP0	110	150	20	2909	1880	0.94	K11020CP0
NK12020CP0	120	160	20	3200	1982	1.01	K12020CP0
NK13020CP0	130	170	20	3345	2023	1.08	K13020CP0
NK14020CP0	140	180	20	3636	2121	1.15	K14020CP0
NK15020CP0	150	190	20	3781	2161	1.20	K15020CP0
NK16020CP0	160	200	20	4072	2254	1.30	K16020CP0
NK17020CP0	170	210	20	4363	2293	1.40	K17020CP0
NK18020CP0	180	220	20	4508	2383	1.50	K18020CP0
NK19020CP0	190	230	20	4800	2470	1.50	K19020CP0
NK20020CP0	200	240	20	4945	2507	1.50	K20020CP0
NK25020CP0	250	290	20	6108	2821	2.10	K25020CP0
NK30020CP0	300	340	20	7272	3111	2.30	K30020CP0
NK32020CP0	320	360	20	7708	3213	2.42	K32020CP0
NK34020CP0	340	380	20	8144	3312	2.54	K34020CP0
NK36020CP0	360	400	20	8581	3408	2.70	K36020CP0
