Thin Section Ball Bearings-Sealed Radial Contact Bearings, C-Type

Inch size Sealed Thin-Section Bearings (Type C) is a single row bearing, which is able to provide low torque and allow significant weight and space reduction and has been widely used on radar, armaments, and precision instruments.

Send Inquiry

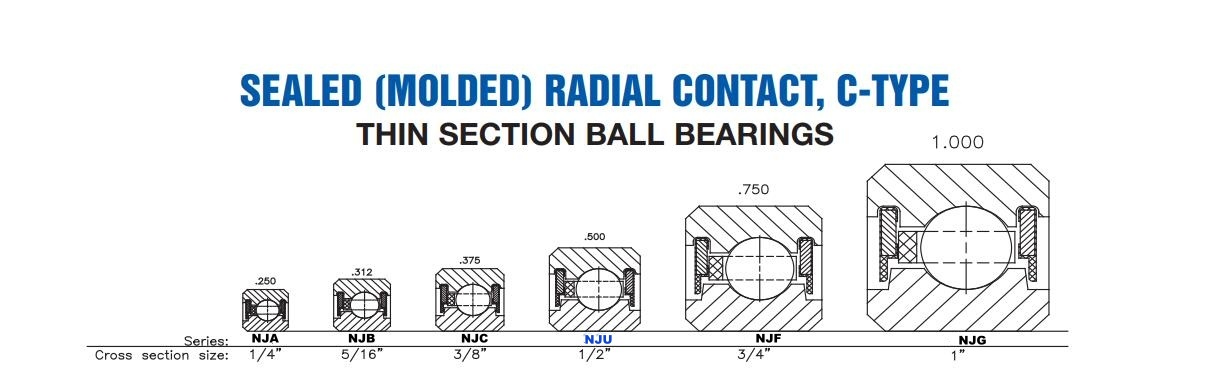

Thin Section Ball Bearings-Sealed Radial Contact Bearings, C-Type

C-Type Sealed Radial Contact Thin-Section Bearings (Deep Groove Ball Structure): Engineered for Low Torque, Lightweight Efficiency, and Compact Performance

Type C Sealed Radial Contact Thin-Section Bearings, featuring a precision deep groove ball structure, are specialized solutions designed to deliver exceptional low-torque characteristics, lightweight efficiency, and compact dimensional profiles. Widely deployed in critical applications such as radar systems, armaments, and precision instruments, these bearings balance high-performance functionality with the stringent space constraints of modern engineering.

Standard configurations incorporate double-sealed designs to maximize contamination resistance and extend service life; single-side sealing variants are also available to accommodate unique operational environment requirements. Seals are precision-engineered from nitrile rubber (NBR), ensuring robust defense against dust, moisture, and other contaminants while maintaining reliable performance in harsh industrial or outdoor conditions.

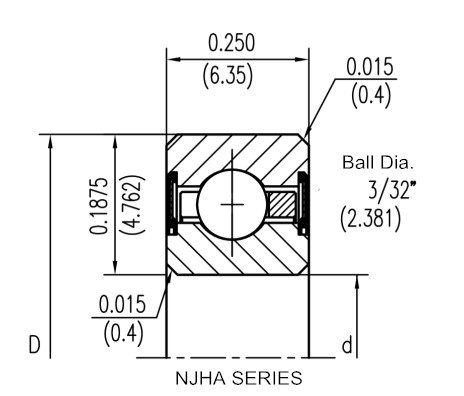

NJHA Series Sealed Radial Contact Thin-Section Bearings (ID:25.4-38.1mm)

◆NJHA SERIES
Part No	Dimension（inch/mm)			Basic Cap（N)		Weight	Interchange
	d	D	H	Cor	Cr	Kg	SILVER	KAYDON	SSB
NJHA10CP0	1.000	1.375	0.250	1290	670	0.016	JSHA10CL0	JHA10CL0	RJHA10CL0
	25.400	34.925	6.350
NJHA15CP0	1.500	1.875	0.250	1780	800	0.024	JSHA15CL0	JHA15CL0	RJHA15CL0
	38.100	47.625	6.350

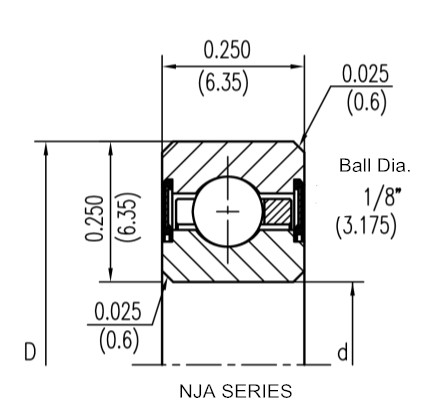

NJA Series Sealed Radial Contact Thin-Section Bearings (ID:50.8-165.1mm)

◆NJA SERIES
Part No	Dimension（inch/mm)			Basic Cap（N)		Weight	Interchange
	d	D	H	Cor	Cr	Kg	SILVER	KAYDON	SSB
NJA020CP0	2.000	2.500	0.250	3020	1420	0.045	JSA020CP0	JA020CP0	RJA020CP0
	50.800	63.500	6.350
NJA025CP0	2.500	3.000	0.250	3690	1600	0.054	JSA025CP0	JA025CP0	RJA025CP0
	63.500	76.200	6.350
NJA030CP0	3.000	3.500	0.250	4400	1820	0.064	JSA030CP0	JA030CP0	RJA030CP0
	76.200	88.900	6.350
NJA035CP0	3.500	4.000	0.250	5070	2000	0.077	JSA035CP0	JA035CP0	RJA035CP0
	88.900	101.600	6.350
NJA040CP0	4.000	4.500	0.250	5730	2130	0.086	JSA040CP0	JA040CP0	RJA040CP0
	101.600	114.300	6.350
NJA042CP0	4.250	4.750	0.250	6090	2220	0.091	JSA042CP0	JA042CP0	RJA042CP0
	107.950	120.650	6.350
NJA045CP0	4.500	5.000	0.250	6400	2310	0.095	JSA045CP0	JA045CP0	RJA045CP0
	114.300	127.000	6.350
NJA047CP0	4.750	5.250	0.250	6760	2400	0.100	JSA047CP0	JA047CP0	RJA047CP0
	120.650	133.350	6.350
NJA050CP0	5.000	5.500	0.250	7070	2490	0.104	JSA050CP0	JA050CP0	RJA050CP0
	127.000	139.700	6.350
NJA055CP0	5.500	6.000	0.250	7780	2620	0.113	JSA055CP0	JA055CP0	RJA055CP0
	139.700	152.400	6.350
NJA060CP0	6.000	6.500	0.250	8450	2800	0.127	JSA060CP0	JA060CP0	RJA060CP0
	152.400	165.100	6.350
NJA065CP0	6.500	7.000	0.250	9110	2930	0.136	JSA065CP0	JA065CP0	RJA065CP0
	165.100	177.800	6.350

NJB Series Sealed Radial Contact Thin-Section Bearings (ID:50.8-165.1mm)

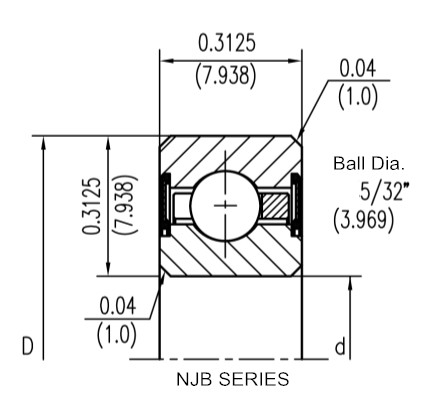

NJB sealed radial contact thin section bearing sectional drawing

NJB sealed radial contact thin bearing-cross section size

◆NJB SERIES
Part No	Dimension（inch/mm)			Basic Cap（N)		Weight	Interchange
	d	D	H	Cor	Cr	Kg	SILVER	KAYDON	SSB
NJB020CP0	2.000	2.625	0.313	4130	2000	0.068	JSB020CP0	JB020CP0	RJB020CP0
	50.800	66.700	7.938
NJB025CP0	2.500	3.125	0.313	5070	2310	0.086	JSB025CP0	JB025CP0	RJB025CP0
	63.500	79.375	7.938
NJB030CP0	3.000	3.625	0.313	5960	2580	0.100	JSB030CP0	JB030CP0	RJB030CP0
	76.200	92.075	7.938
NJB035CP0	3.500	4.125	0.313	6850	2800	0.122	JSB035CP0	JB035CP0	RJB035CP0
	88.900	104.775	7.938
NJB040CP0	4.000	4.625	0.313	7780	3070	0.136	JSB040CP0	JB040CP0	RJB040CP0
	101.600	117.475	7.938
NJB042CP0	4.250	4.875	0.313	8130	3160	0.141	JSB042CP0	JB042CP0	RJB042CP0
	107.950	123.825	7.938
NJB045CP0	4.500	5.125	0.313	8670	3290	0.154	JSB045CP0	JB045CP0	RJB045CP0
	114.300	130.175	7.938
NJB047CP0	4.750	5.375	0.313	9020	3380	0.159	JSB047CP0	JB047CP0	RJB047CP0
	120.650	136.525	7.938
NJB050CP0	5.000	5.625	0.313	9560	3510	0.168	JSB050CP0	JB050CP0	RJB050CP0
	127.000	142.875	7.938
NJB055CP0	5.500	6.125	0.313	10490	3730	0.181	JSB055CP0	JB055CP0	RJB055CP0
	139.700	155.575	7.938
NJB060CP0	6.000	6.625	0.313	11380	3960	0.200	JSB060CP0	JB060CP0	RJB060CP0
	152.400	168.275	7.938
NJB065CP0	6.500	7.125	0.313	12270	4130	0.213	JSB065CP0	JB065CP0	RJB065CP0
	165.100	180.975	7.938

NJU Series Sealed Radial Contact Thin-Section Bearings (ID:101.6-304.8mm)

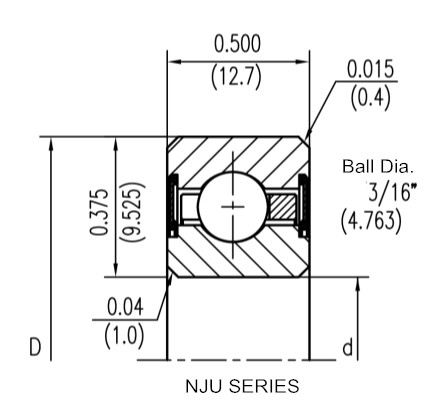

NJU Sealed radial contact thin-walled bearing sectional drawing

NJU sealed radial contact thin-walled bearing-cross section size

◆NJU SERIES
Part No	Dimension（inch/mm)			Basic Cap（N)		Weight	Interchange
	d	D	H	Cor	Cr	Kg	SILVER	KAYDON	INA
NJU040CP0	4.000	4.750	0.500	9340	3910	0.249	JSU040CP0	JU040CP0	CSCU040-2RS
	101.600	120.650	12.700
NJU042CP0	4.250	5.000	0.500	9870	4090	0.263	JSU042CP0	JU042CP0	CSCU042-2RS
	107.950	127.000	12.700
NJU045CP0	4.500	5.250	0.500	10400	4220	0.277	JSU045CP0	JU045CP0	CSCU045-2RS
	114.300	133.350	12.700
NJU047CP0	4.750	5.500	0.500	10940	4360	0.295	JSU047CP0	JU047CP0	CSCU047-2RS
	120.650	139.700	12.700
NJU050CP0	5.000	5.750	0.500	11510	4490	0.308	JSU050CP0	JU050CP0	CSCU050-2RS
	127.000	146.050	12.700
NJU055CP0	5.500	6.250	0.500	12580	4800	0.336	JSU055CP0	JU055CP0	CSCU055-2RS
	139.700	158.750	12.700
NJU060CP0	6.000	6.750	0.500	13650	5070	0.367	JSU060CP0	JU060CP0	CSCU060-2RS
	152.400	171.450	12.700
NJU065CP0	6.500	7.250	0.500	14740	5330	0.395	JSU065CP0	JU065CP0	CSCU065-2RS
	165.100	184.150	12.700
NJU070CP0	7.000	7.750	0.500	15780	5560	0.422	JSU070CP0	JU070CP0	CSCU070-2RS
	177.800	196.850	12.700
NJU075CP0	7.500	8.250	0.500	16850	5820	0.449	JSU075CP0	JU075CP0	CSCU075-2RS
	190.500	209.550	12.700
NJU080CP0	8.000	8.750	0.500	17910	6050	0.481	JSU080CP0	JU080CP0	CSCU080-2RS
	203.200	222.250	12.700
NJU090CP0	9.000	9.750	0.500	20050	6530	0.535	JSU090CP0	JU090CP0	CSCU090-2RS
	228.600	247.650	12.700
NJU100CP0	10.000	10.750	0.500	22180	6980	0.594	JSU100CP0	JU100CP0	CSCU100-2RS
	254.000	273.050	12.700
NJU110CP0	11.000	11.750	0.500	24310	7420	0.649	JSU110CP0	JU110CP0	CSCU110-2RS
	279.400	298.450	12.700
NJU120CP0	12.000	12.750	0.500	26450	7870	0.708	JSU120CP0	JU120CP0	CSCU120-2RS
	304.800	323.850	12.700

NJG Series Sealed Radial Contact Thin-Section Bearings (ID:304.8-508mm)

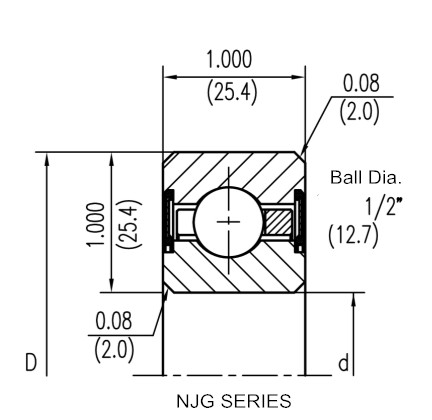

NJG Sealed radial contact thin-walled bearing sectional drawing

NJG Sealed radial contact thin section ball bearing-cross section size

◆NJG SERIES
Part No	Dimension（inch/mm)			Basic Cap（N)		Weight	Interchange
	d	D	H	Cor	Cr	Kg	SILVER	KAYDON	SSB
NJG120CP0	12.000	14.000	1.000	94860	37830	4.218	JSG120CP0	JG120CP0	RJG120CP0
	304.800	355.600	25.400
NJG140CP0	14.000	16.000	1.000	109440	41600	4.899	JSG140CP0	JG140CP0	RJG140CP0
	355.600	406.400	25.400
NJG160CP0	16.000	18.000	1.000	124060	45250	5.579	JSG160CP0	JG160CP0	RJG160CP0
	406.400	457.200	25.400
NJG180CP0	18.000	20.000	1.000	138640	48720	6.214	JSG180CP0	JG180CP0	RJG180CP0
	457.200	508.000	25.400
NJG200CP0	20.000	22.000	1.000	153220	52100	7.167	JSG200CP0	JG200CP0	RJG200CP0
	508.000	558.800	25.400
