X-Type Thin Section 4-Point Contact Ball Bearings

Inch size thin section four point contact ball bearing (Type X) is a single row ball bearing, it carries loads from radial and axial both directions, it can replace two bearings and can provide different internal preloads and clearances according to customer needs.

Send Inquiry

X-Type Thin Section Four Point Contact Ball Bearings – NKAA to NKG Series

Key Specifications:

Dimension Range: 3/16″x 3/16″ (4.762×4.762 mm) to 1″ x 1″ (25.4×25.4 mm)
Material: 52100 Chrome Steel (Rings/Balls) | Brass/Nylon Cages
Seal Type: Open Design
Temperature Range: -30°F to 356°F (-30°C to 180°C)
Lubrication: Pre-Lubricated
Load Capacity: Rated for Radial/Axial Loads in Both Directions
Interchangeable Brands: NTN, KAYDON, INA

Product Features:

Single-row design reduces assembly complexity
High-speed capability for slow/intermittent rotation
Customizable preload/clearance options
Lightweight yet durable construction
Meets ABEC-1 precision standards

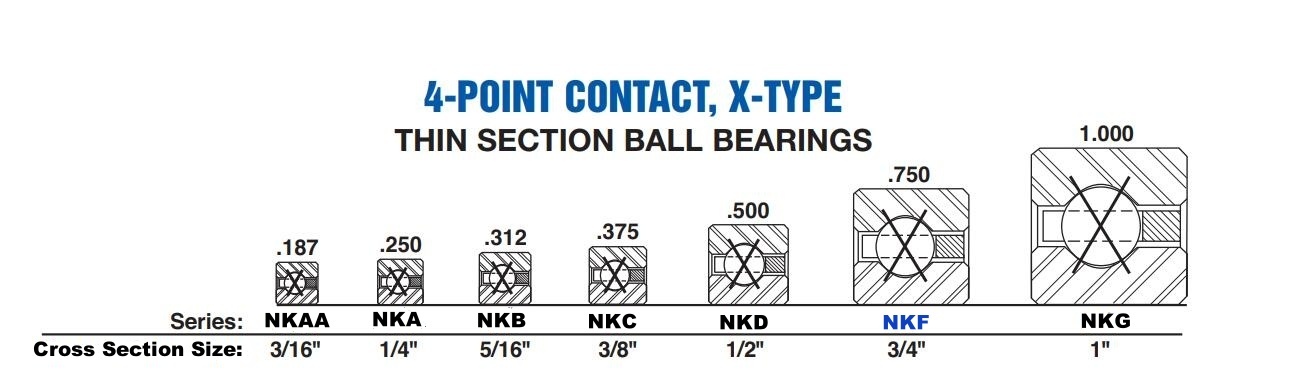

Series Number: NKAA, NKA, NKB, NKC, NKD, NKF, NKG

Thin-section four-point contact ball bearings enhance friction resistance and operational precision. They address the size and weight limitations of conventional bearings, as well as those of associated shafts and bearing seats. A key distinguishing feature of these bearings is their ability to support both radial and axial loads in either direction. Their extremely thin cross-section enables significant size and weight reduction, making them particularly suitable for light- to medium-duty applications involving slow-speed or intermittent rotational conditions. Notably, a single four-point contact ball bearing often replaces two conventional bearings, simplifying mechanical design. These bearings can also be customized to provide varying internal preloads and clearances to meet specific customer requirements. This customization is achieved by adjusting the ball size relative to the internal gaps between the inner and outer raceways. Even under zero external load, the balls and raceways will exhibit a certain degree of elastic deformation due to inherent contact stresses.

Thin Section Four Point Contact Ball Bearings NKAA Series (3/16″X 3/16″)

NKAA 4-Point Thin Section Ball Bearing (X-Type) - Cross Section View

X-TYPE–Thin Section Bearings
Seale Type: Open
Series: NKAA
Inner Diameters: 1.000 inch (25.4 mm)-1.750 inch (44.450 mm)
Outer Diameters: 1.375 inch (34.925 mm)- 2.125 inch (53.975 mm)

NKAA 4-Point Thin Section Ball Bearing (X-Type)-Sectional drawing

◆NKAA SERIES
Part No	Dimension（inch/mm)			Basic Cap（N)				Weight	Interchange
	d	D	H	Cor	Cr	Coa	Ca	Kg	NTN	KAYDON	INA
NKAA10XP0	1.000	1.375	0.1875	1290	670	3250	1650	0.012	KXS010	KAA10XL0	CSXAA010-TN
	25.400	34.925	4.762
NKAA15XP0	1.500	1.875	0.1875	1780	800	4450	2050	0.018	KXS015	KAA15XL0	CSXAA015-TN
	38.100	47.625	4.762
NKAA17XP0	1.750	2.125	0.1875	3100	2950	5070	2220	0.020	KXS017	KAA17XL0	CSXAA017-TN
	44.450	53.975	4.762

Thin Section Four Point Contact Ball Bearings NKA Series (1/4″X 1/4″)

NKA 4-Point Contact Thin Section Ball Bearing (X-Type) - Cross Section View

X-TYPE–Thin Section Bearings
Seals Type: Open
Series: NKA
Inner Diameters: 2.000 inch (25.4 mm)-12.000 inch (304.800 mm)
Outer Diameters: 2.500 inch (63.500 mm)- 12.500 inch (317.500 mm)

NKA series 4-point contact thin bearing-sectional drawing

◆NKA SERIES
Part No	Dimension（inch/mm)			Basic Cap（N)				Weight	Interchange
	d	D	H	Cor	Cr	Coa	Ca	Kg	NTN	KAYDON	INA
NKA020XP0	2.000	2.500	0.25	1650	1420	7600	3510	0.048	KXA020	KA020XP0	CSXA020
	50.800	63.500	6.35
NKA025XP0	2.500	3.000	0.25	3690	1600	9290	4050	0.059	KXA025	KA025XP0	CSXA025
	63.500	76.200	6.35
NKA030XP0	3.000	3.500	0.25	4400	1820	10980	4490	0.068	KXA030	KA030XP0	CSXA030
	76.200	88.900	6.35
NKA035XP0	3.500	4.000	0.25	5070	2000	12670	4930	0.082	KXA035	KA035XP0	CSXA035
	88.900	101.600	6.35
NKA040XP0	4.000	4.500	0.25	5730	2130	14310	5380	0.090	KXA040	KA040XP0	CSXA040
	101.600	114.300	6.35
NKA042XP0	4.250	4.750	0.25	6090	2220	15160	5600	0.095	KXA042	KA042XP0	CSXA042
	107.950	120.650	6.35
NKA045XP0	4.500	5.000	0.25	6400	2310	16000	5820	0.100	KXA045	KA045XP0	CSXA045
	114.300	127.000	6.35
NKA047XP0	4.750	5.250	0.25	6760	2400	16850	6000	0.104	KXA047	KA047XP0	CSXA047
	120.650	133.350	6.35
NKA050XP0	5.000	5.500	0.25	7070	2490	17690	6220	0.109	KXA050	KA050XP0	CSXA050
	127.000	139.700	6.35
NKA055XP0	5.500	6.000	0.25	7780	2620	19380	6580	0.118	KXA055	KA055XP0	CSXA055
	139.700	152.400	6.35
NKA060XP0	6.000	6.500	0.25	8450	2800	21070	6980	0.130	KXA060	KA060XP0	CSXA060
	152.400	165.100	6.35
NKA065XP0	6.500	7.000	0.25	9110	2930	22760	7330	0.140	KXA065	KA065XP0	CSXA065
	165.100	177.800	6.35
NKA070XP0	7.000	7.500	0.25	9780	3070	24450	7690	0.150	KXA070	KA070XP0	CSXA070
	177.800	190.500	6.35
NKA075XP0	7.500	8.000	0.25	10450	3200	26140	8050	0.160	KXA075	KA075XP0	CSXA075
	190.500	203.200	6.35
NKA080XP0	8.000	8.500	0.25	11110	3330	27830	8400	0.172	KXA080	KA080XP0	CSXA080
	203.200	215.900	6.35
NKA090XP0	9.000	9.500	0.25	12490	3600	31200	9070	0.200	KXA090	KA090XP0	CSXA090
	228.600	241.300	6.35
NKA100XP0	10.000	10.500	0.25	13820	3870	34580	9690	0.227	KXA100	KA100XP0	CSXA100
	254.000	266.700	6.35
NKA110XP0	11.000	11.500	0.25	15160	4130	37960	10310	0.236	KXA110	KA110XP0	CSXA110
	279.400	292.100	6.35
NKA120XP0	12.000	12.500	0.25	16540	4360	41340	10890	0.254	KXA120	KA120XP0	CSXA120
	304.800	317.500	6.35

Thin Section Four Point Contact Ball Bearings NKB Series (5/16″X 5/16″)

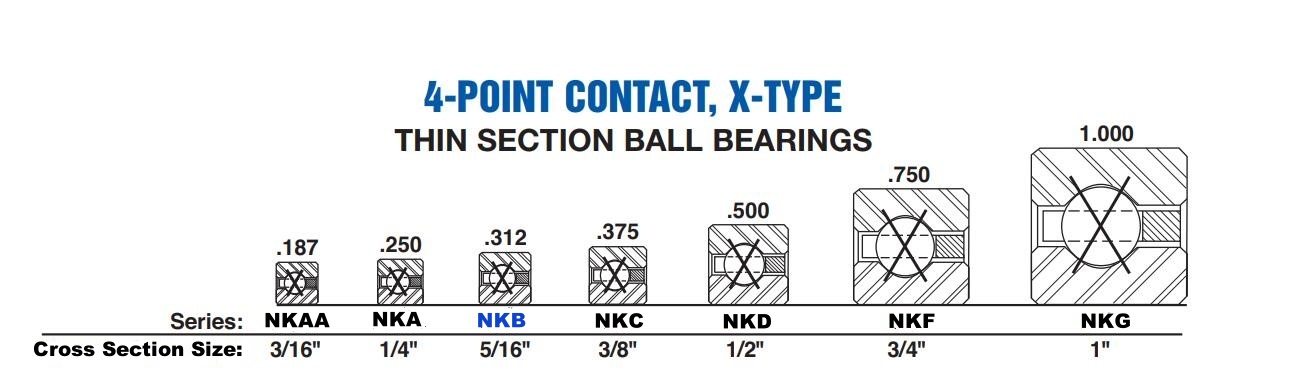

NKB 4-Point Thin Section Ball Bearing (X-Type) - Cross Section View

X-TYPE–Thin Section Bearings
Seals Type: Open
Series: NKB
Inner Diameters: 2.000 inch (50.8 mm)-20.000 inch (44.45 mm)
Outer Diameters: 2.625 inch (508.000 mm)-20.625 inch (523.875 mm)

NKB series X-Type thin-walled bearing-sectional drawing

◆NKB SERIES
Part No	Dimension（inch/mm)			Basic Cap（N)				Weight	Interchange
	d	D	H	Cor	Cr	Coa	Ca	Kg	NTN	KAYDON	INA
NKB020XP0	2.000	2.625	0.3125	4130	2000	10400	5020	0.073	KXB020	KB020XP0	CSXB020
	50.800	66.675	7.9380
NKB025XP0	2.500	3.125	0.3125	5070	2310	12620	5730	0.091	KXB025	KB025XP0	CSXB025
	63.500	79.375	7.9380
NKB030XP0	3.000	3.625	0.3125	5960	2580	14890	6400	0.109	KXB030	KB030XP0	CSXB030
	76.200	92.075	7.9380
NKB035XP0	3.500	4.125	0.3125	6850	2800	17160	7070	0.125	KXB035	KB035XP0	CSXB035
	88.900	104.775	7.9380
NKB040XP0	4.000	4.625	0.3125	7780	3070	19430	7650	0.140	KXB040	KB040XP0	CSXB040
	101.600	117.475	7.9380
NKB042XP0	4.250	4.875	0.3125	8130	3160	20310	7910	0.147	KXB042	KB042XP0	CSXB042
	107.950	123.825	7.9380
NKB045XP0	4.500	5.125	0.3125	8670	3290	21690	8220	0.160	KXB045	KB045XP0	CSXB045
	114.300	130.175	7.9380
NKB047XP0	4.750	5.375	0.3125	9020	3380	22580	8450	0.163	KXB047	KB047XP0	CSXB047
	120.650	136.525	7.9380
NKB050XP0	5.000	5.625	0.3125	9560	3510	23910	8800	0.172	KXB050	KB050XP0	CSXB050
	127.000	142.875	7.9380
NKB055XP0	5.500	6.125	0.3125	10490	3730	26180	9340	0.186	KXB055	KB055XP0	CSXB055
	139.700	155.575	7.9380
NKB060XP0	6.000	6.625	0.3125	11380	3960	28450	9870	0.205	KXB060	KB060XP0	CSXB060
	152.400	168.275	7.9380
NKB065XP0	6.500	7.125	0.3125	12270	4130	30720	10400	0.216	KXB065	KB065XP0	CSXB065
	165.100	180.975	7.9380
NKB070XP0	7.000	7.625	0.3125	13200	4360	32980	10890	0.232	KXB070	KB070XP0	CSXB070
	177.800	193.675	7.9380
NKB075XP0	7.500	8.125	0.3125	14090	4530	35200	11380	0.250	KXB075	KB075XP0	CSXB075
	190.500	206.375	7.9380
NKB080XP0	8.000	8.625	0.3125	14980	4760	37470	11870	0.262	KXB080	KB080XP0	CSXB080
	203.200	219.075	7.9380
NKB090XP0	9.000	9.625	0.3125	16800	5110	42000	12800	0.300	KXB090	KB090XP0	CSXB090
	228.600	244.475	7.9380
NKB100XP0	10.000	10.625	0.3125	18620	5470	46500	13690	0.331	KXB100	KB100XP0	CSXB100
	254.000	269.875	7.9380
NKB110XP0	11.000	11.625	0.3125	20400	5820	51030	14580	0.360	KXB110	KB110XP0	CSXB110
	279.400	295.275	7.9380
NKB120XP0	12.000	12.625	0.3125	22230	6180	55560	15420	0.390	KXB120	KB120XP0	CSXB120
	304.800	320.675	7.9380
NKB140XP0	14.000	14.625	0.3125	25830	6800	64590	17070	0.476	KXB140	KB140XP0	CSXB140
	355.600	371.475	7.9380
NKB160XP0	16.000	16.625	0.3125	29430	7420	73610	18630	0.544	KXB160	KB160XP0	CSXB160
	406.400	422.275	7.9380
NKB180XP0	18.000	18.625	0.3125	33070	8050	82630	20090	0.612	KXB180	KB180XP0	CSXB180
	457.200	473.075	7.9380
NKB200XP0	20.000	20.625	0.3125	36670	8620	91660	21560	0.68	KXB200	KB200XP0	CSXB200
	508.000	523.875	7.9380

Thin Section Four Point Contact Ball Bearings NKC Series (3/8″X 3/8″)

NKC 4-Point Thin Section Ball Bearing (X-Type) - Cross Section View

X-TYPE–Thin Section Bearings
Seals Type: Open
Series: NKC
Inner Diameters: 4.000 inch (101.600 mm)-20.000 inch (508.000 mm)
Outer Diameters: 4.750 inch (120.650 mm)- 20.750 inch (527.050 mm)

NKC series 4-point contact thin-walled bearing-sectional view

◆NKC SERIES
Part No	Dimension（inch/mm)			Basic Cap（N)				Weight	Interchange
	d	D	H	Cor	Cr	Coa	Ca	Kg	NTN	KAYDON	INA
NKC040XP0	4.000	4.750	0.375	9340	3910	23380	9820	0.204	KXC040	KC040XP0	CSXC040
	101.600	120.650	9.525
NKC042XP0	4.250	5.000	0.375	9870	4090	24710	10180	0.213	KXC042	KC042XP0	CSXC042
	107.950	127.000	9.525
NKC045XP0	4.500	5.250	0.375	10400	4220	26050	10580	0.225	KXC045	KC045XP0	CSXC045
	114.300	133.350	9.525
NKC047XP0	4.750	5.000	0.375	10940	4360	27380	10940	0.235	KXC047	KC047XP0	CSXC047
	120.650	139.700	9.525
NKC050XP0	5.000	5.750	0.375	11510	4490	28720	11290	0.263	KXC050	KC050XP0	CSXC050
	127.000	146.050	9.525
NKC055XP0	5.500	6.250	0.375	12580	4800	31380	11960	0.268	KXC055	KC055XP0	CSXC055
	139.700	158.750	9.525
NKC060XP0	6.000	6.750	0.375	13650	5070	34050	12620	0.295	KXC060	KC060XP0	CSXC060
	152.400	171.450	9.525
NKC065XP0	6.500	7.250	0.375	14710	5330	36760	13290	0.312	KXC065	KC065XP0	CSXC065
	165.100	184.150	9.525
NKC070XP0	7.000	7.750	0.375	15780	5560	39430	13910	0.340	KXC070	KC070XP0	CSXC070
	177.800	196.850	9.525
NKC075XP0	7.500	8.250	0.375	16850	5820	42090	14540	0.360	KXC075	KC075XP0	CSXC075
	190.500	209.550	9.525
NKC080XP0	8.000	8.750	0.375	17910	6050	44760	15160	0.387	KXC080	KC080XP0	CSXC080
	203.200	222.250	9.525
NKC090XP0	9.000	9.750	0.375	20050	6530	50100	16310	0.450	KXC090	KC090XP0	CSXC090
	228.600	247.650	9.525
NKC100XP0	10.000	10.750	0.375	22180	6980	55430	17470	0.481	KXC100	KC100XP0	CSXC100
	254.000	273.050	9.525
NKC110XP0	11.000	11.750	0.375	24310	7420	60810	18580	0.526	KXC110	KC110XP0	CSXC110
	279.400	298.450	9.525
NKC120XP0	12.000	12.750	0.375	26450	7870	66140	19650	0.567	KXC120	KC120XP0	CSXC120
	304.800	323.850	9.525
NKC140XP0	14.000	14.750	0.375	30720	8670	76810	21740	0.689	KXC140	KC140XP0	CSXC140
	355.600	374.650	9.525
NKC160XP0	16.000	16.750	0.375	35030	9470	87520	23690	0.785	KXC160	KC160XP0	CSXC160
	406.400	425.450	9.525
NKC180XP0	18.000	18.750	0.375	39290	10220	98190	25600	0.880	KXC180	KC180XP0	CSXC180
	457.200	476.250	9.525
NKC200XP0	20.000	20.750	0.375	43560	10980	108900	27430	0.980	KXC200	KC200XP0	CSXC200
	508.000	527.050	9.525
NKC250XP0	25.000	25.750	0.375	54280	17534	135745	31767	1.200	KXC250	KC250XP0	CSXC250
	635.000	654.050	9.525

Thin Section Four Point Contact Ball Bearings NKD Series (1/2″X 1/2″)

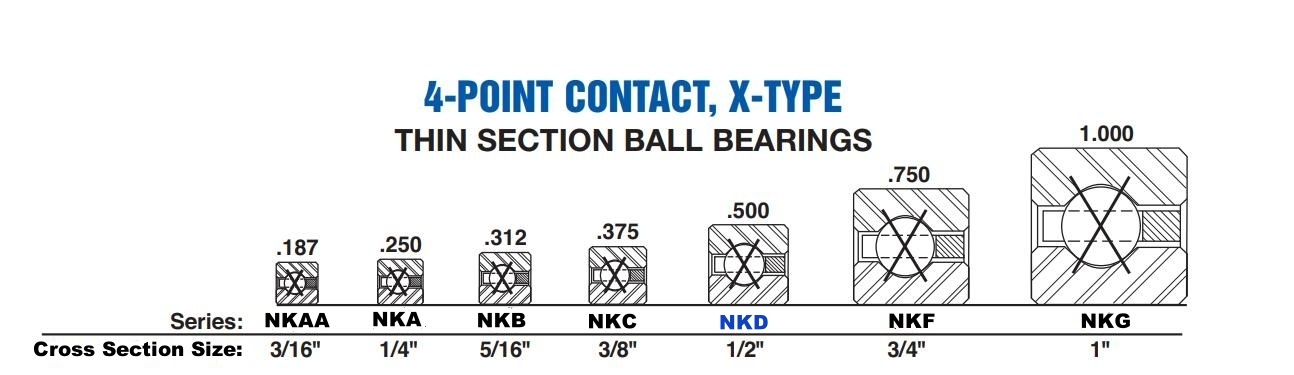

NKD 4-Point Thin-Walled Ball Bearing (X-Type) - Cross Section View

X-TYPE–Thin Section Bearings
Seals Type: Open
Series: NKD
Inner Diameters: 4.000 inch (101.600 mm)-20.000 inch (508.000 mm)
Outer Diameters: 5.000 inch (127.000mm)- 21.000 inch (533.400 mm)

NKD series thin bearings-sectional drawing

◆NKD SERIES
Part No	Dimension（inch/mm)			Basic Cap（N)				Weight	Interchange
	d	D	H	Cor	Cr	Coa	Ca	Kg	NTN	KAYDON	INA
NKD040XP0	4.000	5.000	0.5	13690	6270	34230	15650	0.366	KXD040	KD040XP0	CSXD040
	101.600	127.000	12.7
NKD042XP0	4.250	5.250	0.5	14180	6400	35470	16000	0.386	KXD042	KD042XP0	CSXD042
	107.950	133.350	12.7
NKD045XP0	4.500	5.500	0.5	15200	6710	38010	16760	0.405	KXD045	KD045XP0	CSXD045
	114.300	139.700	12.7
NKD047XP0	4.750	5.750	0.5	15690	6850	39290	17160	0.426	KXD047	KD047XP0	CSXD047
	120.650	146.050	12.7
NKD050XP0	5.000	6.000	0.5	16710	7160	41830	17870	0.454	KXD050	KD050XP0	CSXD050
	127.000	152.400	12.7
NKD055XP0	5.500	6.500	0.5	18230	7560	45610	18940	0.485	KXD055	KD055XP0	CSXD055
	139.700	165.100	12.7
NKD060XP0	6.000	7.000	0.5	19780	8000	49430	19960	0.526	KXD060	KD060XP0	CSXD060
	152.400	177.800	12.7
NKD065XP0	6.500	7.500	0.5	21290	8400	53210	20980	0.566	KXD065	KD065XP0	CSXD065
	165.100	190.500	12.7
NKD070XP0	7.000	8.000	0.5	22800	8800	57030	21960	0.606	KXD070	KD070XP0	CSXD070
	177.800	203.200	12.7
NKD075XP0	7.500	8.500	0.5	24310	9160	60810	22940	0.650	KXD075	KD075XP0	CSXD075
	190.500	215.900	12.7
NKD080XP0	8.000	9.000	0.5	25830	9560	64630	23870	0.694	KXD080	KD080XP0	CSXD080
	203.200	228.600	12.7
NKD090XP0	9.000	10.000	0.5	28900	10310	72230	25740	0.780	KXD090	KD090XP0	CSXD090
	228.600	254.000	12.7
NKD100XP0	10.000	11.000	0.5	31920	10980	79830	27520	0.853	KXD100	KD100XP0	CSXD100
	254.000	279.400	12.7
NKD110XP0	11.000	12.000	0.5	34980	11690	87430	29200	0.934	KXD110	KD110XP0	CSXD110
	279.400	304.800	12.7
NKD120XP0	12.000	13.000	0.5	38010	12360	95030	30890	1.020	KXD120	KD120XP0	CSXD120
	304.800	330.200	12.7
NKD140XP0	14.000	15.000	0.5	44090	13650	110240	34090	1.240	KXD140	KD140XP0	CSXD140
	355.600	381.000	12.7
NKD160XP0	16.000	17.000	0.5	50180	14890	125440	37160	1.410	KXD160	KD160XP0	CSXD160
	406.400	431.800	12.7
NKD180XP0	18.000	19.000	0.5	56230	16050	140640	40140	1.580	KXD180	KD180XP0	CSXD180
	457.200	482.600	12.7
NKD200XP0	20.000	21.000	0.5	62320	17200	155840	42980	1.750	KXD200	KD200XP0	CSXD200
	508.000	533.400	12.7
NKD250XP0	25.000	26.000	0.5	77594	27740	194029	49742	2.170	KXD250	KD250XP0	CSXD250
	635.000	660.400	12.7

Thin Section Four Point Contact Ball Bearings NKF Series (3/4″X 3/4″)

NKF 4-Point Thin Section Ball Bearing (X-Type) - Cross Section View

X-TYPE–Thin Section Bearings
Seals Type: Open
Series: NKF
Inner Diameters: 4.000 inch (101.6 mm)-20.000 inch (508.000 mm)
Outer Diameters: 5.500 inch (139.700 mm)- 21.500 inch (546.100 mm)

NKF series 4-point contact thin-walled bearing-sectionaldrawing

◆NKF SERIES
Part No	Dimension（inch/mm)			Basic Cap（N)				Weight	Interchange
	d	D	H	Cor	Cr	Coa	Ca	Kg	NTN	KAYDON	INA
NKF040XP0	4.000	5.500	0.75	23830	12140	59560	30360	0.875	KXF040	KF040XP0	CSXF040
	101.600	139.700	19.05
NKF042XP0	4.250	5.750	0.75	25070	12580	62720	31430	0.930	KXF042	KF042XP0	CSXF042
	107.950	146.050	19.05
NKF045XP0	4.500	6.000	0.75	26360	12980	65830	32450	0.975	KXF045	KF045XP0	CSXF045
	114.300	152.400	19.05
NKF047XP0	4.750	6.250	0.75	27600	13380	68990	33470	1.040	KXF047	KF047XP0	CSXF047
	120.650	158.750	19.05
NKF050XP0	5.000	6.500	0.75	28850	13780	72100	34490	1.090	KXF050	KF050XP0	CSXF050
	127.000	165.100	19.05
NKF055XP0	5.500	7.000	0.75	31340	14580	78370	36450	1.180	KXF055	KF055XP0	CSXF055
	139.700	177.800	19.05
NKF060XP0	6.000	7.500	0.75	33870	15340	84680	38360	1.240	KXF060	KF060XP0	CSXF060
	152.400	190.500	19.05
NKF065XP0	6.500	8.000	0.75	36360	16090	90950	40230	1.350	KXF065	KF065XP0	CSXF065
	165.100	203.200	19.05
NKF070XP0	7.000	8.500	0.75	38890	16850	97210	42050	1.450	KXF070	KF070XP0	CSXF070
	177.800	215.900	19.05
NKF075XP0	7.500	9.000	0.75	41380	17560	103480	43870	1.560	KXF075	KF075XP0	CSXF075
	190.500	228.600	19.05
NKF080XP0	8.000	9.500	0.75	43920	18230	109750	45610	1.660	KXF080	KF080XP0	CSXF080
	203.200	241.300	19.05
NKF090XP0	9.000	10.500	0.75	48900	19600	122280	49030	1.810	KXF090	KF090XP0	CSXF090
	228.600	266.700	19.05
NKF100XP0	10.000	11.500	0.75	53920	20940	134820	52320	2.020	KXF100	KF100XP0	CSXF100
	254.000	292.100	19.05
NKF110XP0	11.000	12.500	0.75	58940	22230	147350	55520	2.180	KXF110	KF110XP0	CSXF110
	279.400	317.500	19.05
NKF120XP0	12.000	13.500	0.75	63960	23470	159890	58630	2.380	KXF120	KF120XP0	CSXF120
	304.800	342.900	19.05
NKF140XP0	14.000	15.500	0.75	74010	25830	185000	64590	2.720	KXF140	KF140XP0	CSXF140
	355.600	393.700	19.05
NKF160XP0	16.000	17.500	0.75	84010	28140	210070	70320	3.220	KXF160	KF160XP0	CSXF160
	406.400	444.500	19.05
NKF180XP0	18.000	19.500	0.75	94060	30320	235140	75830	3.580	KXF180	KF180XP0	CSXF180
	457.200	495.300	19.05
NKF200XP0	20.000	21.500	0.75	104100	32450	260260	81120	4.040	KXF200	KF200XP0	CSXF200
	508.000	546.100	19.05

Thin Section Four Point Contact Ball Bearings NKG Series (1″X 1″)

X-TYPE–Thin Section Bearings
Seals Type: Open
Series: NKG
Inner Diameters: 4.000 inch (101.6 mm)-35.000 inch (889.000 mm)
Outer Diameters: 6.000 inch (152.400 mm)- 37.000 inch (939.800 mm)

NKG series X-type thin-walled bearing sectional drawing

◆NKG SERIES
Part No	Dimension（inch/mm)			Basic Cap（N)				Weight	Interchange
	d	D	H	Cor	Cr	Coa	Ca	Kg	NTN	KAYDON	INA
NKG040XP0	4.000	6.000	1.00	36490	20000	91210	50050	1.650	KXG040	KG040XP0	CSXG040
	101.600	152.400	25.40
NKG042XP0	4.250	6.250	1.00	36490	20000	91210	50050	1.750	KXG042	KG042XP0	CSXG042
	107.950	158.750	25.40
NKG045XP0	4.500	6.500	1.00	38940	20900	97300	52230	1.810	KXG045	KG045XP0	CSXG045
	114.300	165.100	25.40
NKG047XP0	4.750	6.750	1.00	41340	21740	103390	54360	1.910	KXG047	KG047XP0	CSXG047
	120.650	171.450	25.40
NKG050XP0	5.000	7.000	1.00	43780	22580	109440	56500	2.020	KXG050	KG050XP0	CSXG050
	127.000	177.800	25.40
NKG055XP0	5.500	7.500	1.00	46230	23430	115530	58590	2.170	KXG055	KG055XP0	CSXG055
	139.700	190.500	25.40
NKG060XP0	6.000	8.000	1.00	51070	25030	127710	62630	2.310	KXG060	KG060XP0	CSXG060
	152.400	203.200	25.40
NKG065XP0	6.500	8.500	1.00	53520	25830	133800	64590	2.470	KXG065	KG065XP0	CSXG065
	165.100	215.900	25.40
NKG070XP0	7.000	9.000	1.00	58360	27380	145930	68450	2.670	KXG070	KG070XP0	CSXG070
	177.800	228.600	25.40
NKG075XP0	7.500	9.500	1.00	60810	28140	152020	70320	2.830	KXG075	KG075XP0	CSXG075
	190.500	241.300	25.40
NKG080XP0	8.000	10.000	1.00	65650	29600	164200	74010	3.000	KXG080	KG080XP0	CSXG080
	203.200	254.000	25.40
NKG090XP0	9.000	11.000	1.00	72990	31780	182420	79430	3.300	KXG090	KG090XP0	CSXG090
	228.600	279.400	25.40
NKG100XP0	10.000	12.000	1.00	80280	33870	200650	84630	3.650	KXG100	KG100XP0	CSXG100
	254.000	304.800	25.40
NKG110XP0	11.000	13.000	1.00	87570	35870	218920	89700	3.960	KXG110	KG110XP0	CSXG110
	279.400	330.200	25.40
NKG120XP0	12.000	14.000	1.00	94860	37830	237140	94590	4.320	KXG120	KG120XP0	CSXG120
	304.800	355.600	25.40
NKG140XP0	14.000	16.000	1.00	109440	41600	273630	104060	4.960	KXG140	KG140XP0	CSXG140
	355.600	406.400	25.40
NKG160XP0	16.000	18.000	1.00	124060	45250	310130	113130	5.650	KXG160	KG160XP0	CSXG160
	406.400	457.200	25.40
NKG180XP0	18.000	20.000	1.00	138640	48720	346620	121840	6.280	KXG180	KG180XP0	CSXG180
	457.200	508.000	25.40
NKG200XP0	20.000	22.000	1.00	153220	52100	383070	130240	7.530	KXG200	KG200XP0	CSXG200
	508.000	558.800	25.40
NKG250XP0	25.000	27.000	1.00	189800	86110	474600	150250	8.850	KXG250	KG250XP0	CSXG250
	635.000	685.800	25.40
NKG300XP0	30.000	32.000	1.00	226360	94300	565790	168900	10.570	KXG300	KG300XP0	CSXG300
	762.000	812.800	25.40
NKG350XP0	35.000	37.000	1.00	262880	101610	656970	186680	12.300	KXG350	KG350XP0	CSXG350
	889.000	939.800	25.40
NKG400XP0	40.000	42.000	1.00	399475	108257	748800	203639	13.900	KXG400	KG400XP0	CSXG400
	1016.000	1066.800	25.40
