Thin Section Bearings, Open Radial Contact Ball Bearings,C-Type

NKAA10CP0-NKG250CP0 Series Thin Section C-Type Open Radial Contact Ball Bearings | Lightweight · Compact Design · Radial Load Optimization Engineered for rotating equipment requiring stringent weight control, the NKAA10CP0-NKG250CP0 Series Thin Section Bearings (Thin Section Ball Bearings) adopt a C-Type Open Radial Contact Ball Bearing structure. Integrating three core design principles—simplicity, lightweight construction, and compactness—this series serves as an ideal solution for radial load applications. As a single-row radial ball bearing optimized with traditional manufacturing processes, its primary load direction is engineered to prioritize radial loads. The inner and outer rings feature a controlled axial displacement design, strategically limiting the number of load-bearing balls to 50% of the full complement. This configuration balances structural simplicity with performance efficiency. While excelling in radial load handling, the C-Type Open Bearings also accommodate unidirectional thrust loads in specific directions, ensuring flexibility to adapt to complex operational demands. Note: For applications with stringent axial load capacity requirements, angular contact ball bearings are recommended—their native design supports combined radial and axial loads. The series offers width options ranging from 3/16″ (4.762mm) to 1″ (25.4mm), making it suitable for diverse mounting spaces.

Send Inquiry

Thin Section Bearings,
Open Radial Contact Ball Bearings, C-Type

NKAA10CP0-NKG250CP0 Series

Width: From 3/16″(4.762 mm) to 1″ (25.4 mm)

Owing to the fundamental principles of simplicity, lightweight construction, and compactness firmly integrated into rotating equipment design philosophy, thin-section ball bearings have been engineered to meet stringent customer weight requirements. These open radial contact ball bearings (C-Type) are single-row radial ball bearings following a conventional design, with the primary load direction optimized for radial loads.

The inner and outer rings of thin-section bearings feature controlled axial displacement, enabling the number of loaded balls to be strategically limited to half of the full ball complement. While radial contact bearings excel in handling radial loads, they can also accommodate limited unidirectional thrust loads in specific directions—a versatility that often pairs them with complementary bearing types in demanding applications.

However, for scenarios where axial load capacity is critical, we recommend angular contact ball bearings, as their design inherently prioritizes combined radial and axial load handling.

Bearing Type: Ball
For Load Direction: Radial Contact, C-Type
Construction: Single Row
Seal Type: Open

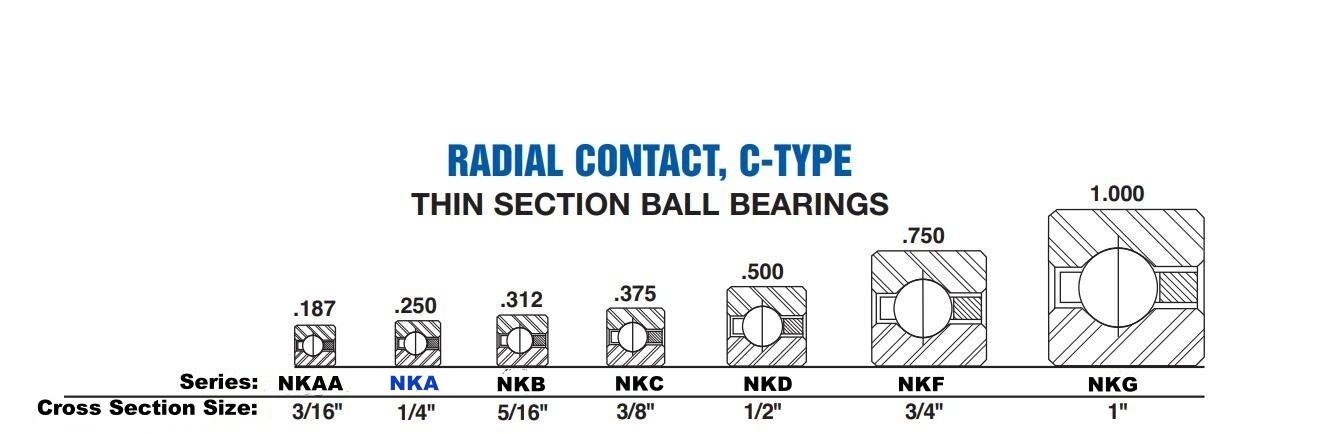

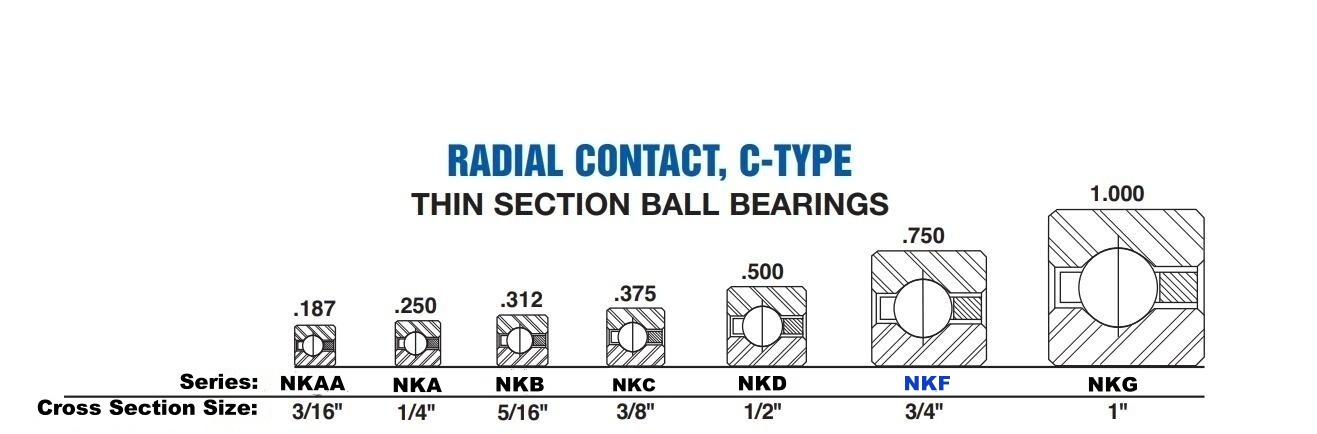

Cross Section: 3/16″ x 3/16″ (4.762×4.762 mm) to 1″ x 1″ ( 25.4 mm x 25.4 mm)
Series Number: NKAA, NKA, NKB, NKC, NKD, NKF, NKG

Ring Material: 52100 Chrome steel Ball Material: 52100 Chrome steel
Cage Material: Brass or Nylon Lubrication: Lubricated
Shaft Mount Type: Press Fit
Temperature Range: -30° to 180 ℃
ABEC Rating: ABEC-1
Radial Clearance: 0.0000 – 0.0005″

Thin Section Radial Contact Ball Bearings NKAA Series (3/16″X 3/16″)

NKAA Thin Section Ball Bearing (C-Type) - Cross Section View

C-TYPE–Thin Section Bearings
Seals Type: Open
Series: NKAA
Inner Diameters: 1.000 inch (25.4 mm)-1.750 inch (44.45 mm)
Outer Diameters: 1.375 inch (34.925 mm)- 2.125 inch (53.975 mm)
Weight:0.012 kg-0.020 kg

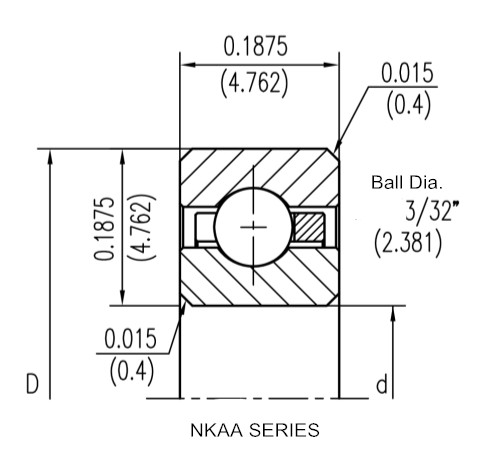

NKAA series radial contact setional drawing

◆NKAA SERIES
Part No	Dimension（inch/mm)			Basic Cap（N)		Weight	Interchange
	d	D	H	Cor	Cr	Kg	NTN	KAYDON	INA
NKAA10CP0	1.000	1.375	0.1875	1290	670	0.012	KRS010	KAA10CL0	CSCAA010-TN
	25.400	34.925	4.762
NKAA15CP0	1.500	1.875	0.1875	1780	800	0.018	KRS015	KAA15CL0	CSCAA015-TN
	38.100	47.625	4.762
NKAA17CP0	1.750	2.125	0.1875	2110	1770	0.020	KRS017	KAA17CL0	CSCAA017-TN
	44.450	53.975	4.762

Thin Section Radial Contact Ball Bearings NKA Series (1/4″X 1/4″)

NKA Thin Section Ball Bearing (C-Type) - Cross Section View

C-TYPE–Thin Section Bearings
Seals Type: Open
Series: NKA
Inner Diameters: 2.000 inch (50.8 mm)-12.000 inch (304.8 mm)
Outer Diameters: 2.500 inch (63.5 mm)- 12.5 inch (317.5 mm)
Weight:0.048 kg-0.254 kg

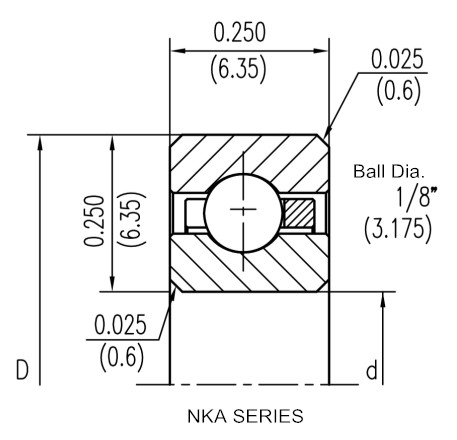

NKA series thin bearing sectional drawing

◆NKA SERIES
Part No	Dimension（inch/mm)			Basic Cap（N)		Weight	Interchange
	d	D	H	Cor	Cr	Kg	NTN	KAYDON	INA
NKA020CP0	2.000	2.500	0.250	3020	1420	0.048	KRA020	KA020CP0	CSCA020
	50.800	63.500	6.350
NKA025CP0	2.500	3.000	0.250	3690	1600	0.059	KRA025	KA025CP0	CSCA025
	63.500	76.200	6.350
NKA030CP0	3.000	3.500	0.250	4400	1820	0.068	KRA030	KA030CP0	CSCA030
	76.200	88.900	6.350
NKA035CP0	3.500	4.000	0.250	5070	2000	0.082	KRA035	KA035CP0	CSCA035
	88.900	101.600	6.350
NKA040CP0	4.000	4.500	0.250	5730	2130	0.090	KRA040	KA040CP0	CSCA040
	101.600	114.300	6.350
NKA042CP0	4.250	4.750	0.250	6090	2220	0.095	KRA042	KA042CP0	CSCA042
	107.950	120.650	6.350
NKA045CP0	4.500	5.000	0.250	6400	2310	0.100	KRA045	KA045CP0	CSCA045
	114.300	127.000	6.350
NKA047CP0	4.750	5.250	0.250	6760	2400	0.104	KRA047	KA047CP0	CSCA047
	120.650	133.350	6.350
NKA050CP0	5.000	5.500	0.250	7070	2490	0.109	KRA050	KA050CP0	CSCA050
	127.000	139.700	6.350
NKA055CP0	5.500	6.000	0.250	7780	2620	0.118	KRA055	KA055CP0	CSCA055
	139.700	152.400	6.350
NKA060CP0	6.000	6.500	0.250	8450	2800	0.130	KRA060	KA060CP0	CSCA060
	152.400	165.100	6.350
NKA065CP0	6.500	7.000	0.250	9110	2930	0.140	KRA065	KA065CP0	CSCA065
	165.100	177.800	6.350
NKA070CP0	7.000	7.500	0.250	9780	3070	0.150	KRA070	KA070CP0	CSCA070
	177.800	190.500	6.350
NKA075CP0	7.500	8.000	0.250	10450	3200	0.160	KRA075	KA075CP0	CSCA075
	190.500	203.200	6.350
NKA080CP0	8.000	8.500	0.250	11110	3330	0.172	KRA080	KA080CP0	CSCA080
	203.200	215.900	6.350
NKA090CP0	9.000	9.500	0.250	12490	3600	0.200	KRA090	KA090CP0	CSCA090
	228.600	241.300	6.350
NKA100CP0	10.000	10.500	0.250	13820	3870	0.227	KRA100	KA100CP0	CSCA100
	254.000	266.700	6.350
NKA110CP0	11.000	11.500	0.250	15160	4130	0.236	KRA110	KA110CP0	CSCA110
	279.400	292.100	6.350
NKA120CP0	12.000	12.500	0.250	16540	4360	0.254	KRA120	KA120CP0	CSCA120
	304.800	317.500	6.350

Thin Section Radial Contact Ball Bearings NKB Series (5/16″X 5/16″)

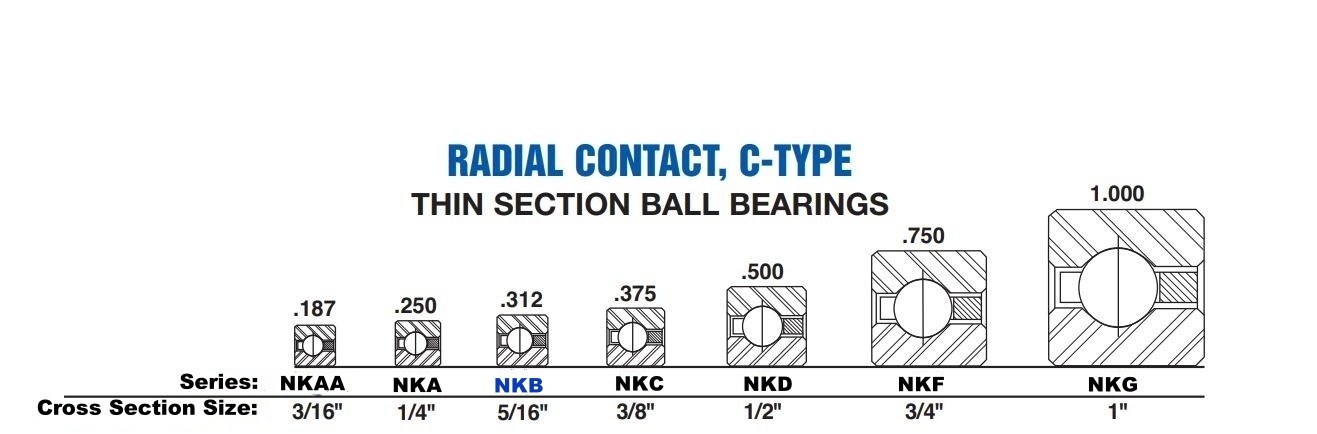

NKB Thin Section Ball Bearing (C-Type) - Cross Section View

C-TYPE–Thin Section Bearings
Seals Type: Open
Series: NKB
Inner Diameters: 2.000 inch (50.8 mm)-20.000 inch (508 mm)
Outer Diameters: 2.625 inch (66.675 mm)- 20.625 inch (523.875 mm)
Weight:0.073 kg-0.68 kg

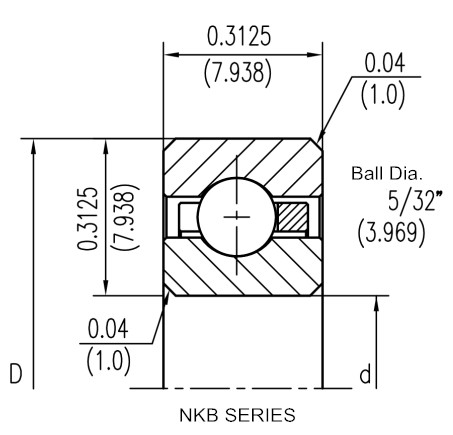

NKB series radial contact ball bearing sectional drawing

◆NKB SERIES
Part No	Dimension（inch/mm)			Basic Cap（N)		Weight	Interchange
	d	D	H	Cor	Cr	Kg	NTN	KAYDON	INA
NKB020CP0	2.000	2.625	0.3125	4130	2000	0.073	KRB020	KB020CP0	CSCB020
	50.800	66.675	7.938
NKB025CP0	2.500	3.125	0.3125	5070	2310	0.091	KRB025	KB025CP0	CSCB025
	63.500	79.375	7.938
NKB030CP0	3.000	3.625	0.3125	5960	2580	0.109	KRB030	KB030CP0	CSCB030
	76.200	92.075	7.938
NKB035CP0	3.500	4.125	0.3125	6850	2800	0.125	KRB035	KB035CP0	CSCB035
	88.900	104.775	7.938
NKB040CP0	4.000	4.625	0.3125	7780	3070	0.140	KRB040	KB040CP0	CSCB040
	101.600	117.475	7.938
NKB042CP0	4.250	4.875	0.3125	8130	3160	0.147	KRB042	KB042CP0	CSCB042
	107.950	123.825	7.938
NKB045CP0	4.500	5.125	0.3125	8670	3290	0.160	KRB045	KB045CP0	CSCB045
	114.300	130.175	7.938
NKB047CP0	4.750	5.375	0.3125	9020	3380	0.163	KRB047	KB047CP0	CSCB047
	120.650	136.525	7.938
NKB050CP0	5.000	5.625	0.3125	9560	3510	0.172	KRB050	KB050CP0	CSCB050
	127.000	142.875	7.938
NKB055CP0	5.500	6.125	0.3125	10490	3730	0.186	KRB055	KB055CP0	CSCB055
	139.700	155.575	7.938
NKB060CP0	6.000	6.625	0.3125	11380	3960	0.205	KRB060	KB060CP0	CSCB060
	152.400	168.275	7.938
NKB065CP0	6.500	7.125	0.3125	12270	4130	0.216	KRB065	KB065CP0	CSCB065
	165.100	180.975	7.938
NKB070CP0	7.000	7.625	0.3125	13200	4360	0.232	KRB070	KB070CP0	CSCB070
	177.800	193.675	7.938
NKB075CP0	7.500	8.125	0.3125	14090	4530	0.250	KRB075	KB075CP0	CSCB075
	190.500	206.375	7.938
NKB080CP0	8.000	8.625	0.3125	14980	4760	0.262	KRB080	KB080CP0	CSCB080
	203.200	219.075	7.938
NKB090CP0	9.000	9.625	0.3125	16800	5110	0.300	KRB090	KB090CP0	CSCB090
	228.600	244.475	7.938
NKB100CP0	10.000	10.625	0.3125	18620	5470	0.331	KRB100	KB100CP0	CSCB100
	254.000	269.875	7.938
NKB110CP0	11.000	11.625	0.3125	20400	5820	0.360	KRB110	KB110CP0	CSCB110
	279.400	295.275	7.938
NKB120CP0	12.000	12.625	0.3125	22230	6180	0.390	KRB120	KB120CP0	CSCB120
	304.800	320.675	7.938
NKB140CP0	14.000	14.625	0.3125	25830	6800	0.476	KRB140	KB140CP0	CSCB140
	355.600	371.475	7.938
NKB160CP0	16.000	16.625	0.3125	29430	7420	0.544	KRB160	KB160CP0	CSCB160
	406.400	422.275	7.938
NKB180CP0	18.000	18.625	0.3125	33070	8050	0.612	KRB180	KB180CP0	CSCB180
	457.200	473.075	7.938
NKB200CP0	20.000	20.625	0.3125	36670	8620	0.68	KRB200	KB200CP0	CSCB200
	508.000	523.875	7.938

Thin Section Radial Contact Ball Bearings NKC Series (3/8″X 3/16″)

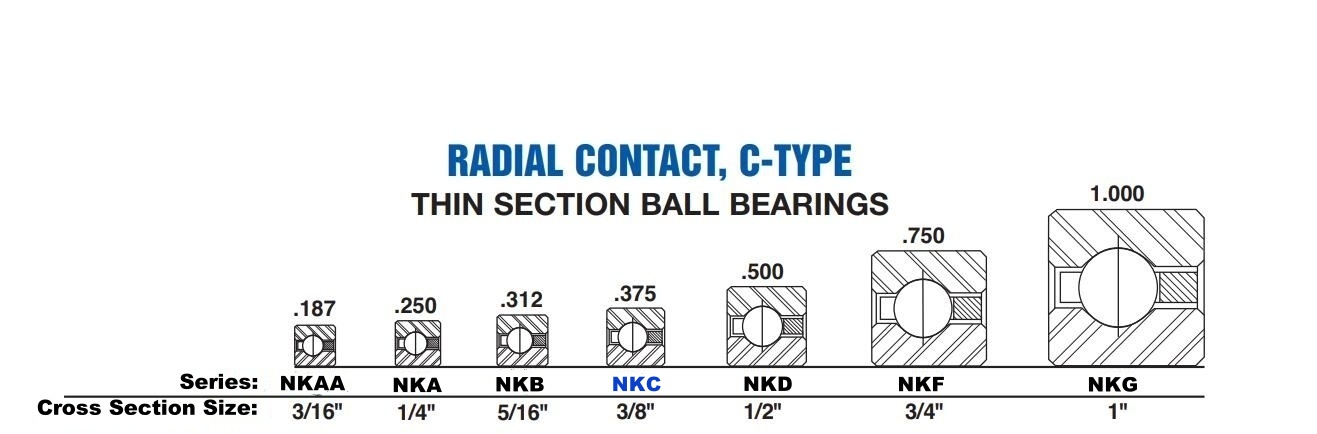

NKC Thin Section Ball Bearing (C-Type) - Cross Section View

C-TYPE–Thin Section Bearings
Seals Type: Open
Series: NKC
Inner Diameters: 4.000 inch (101.6 mm)-20.000 inch (508 mm)
Outer Diameters: 4.750 inch (120.650 mm)- 20.750 inch (527.050 mm)
Weight:0.073 kg-0.68 kg

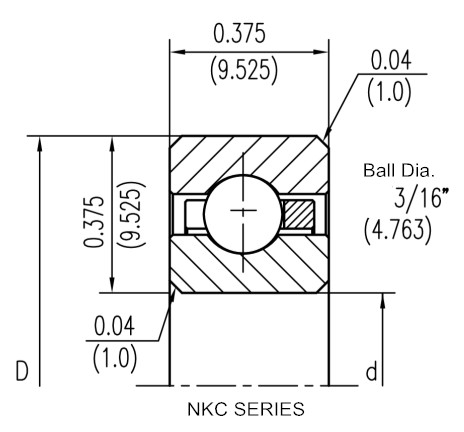

NKC series radial contact ball bearing sectional drawing

◆NKC SERIES
Part No	Dimension（inch/mm)			Basic Cap（N)		Weight	Interchange
	d	D	H	Cor	Cr	Kg	NTN	KAYDON	INA
NKC040CP0	4.000	4.750	0.375	9330	3910	0.204	KRC040	KC040CP0	CSCC040
	101.600	120.650	9.525
NKC042CP0	4.250	5.000	0.375	9780	4090	0.213	KRC042	KC042CP0	CSCC042
	107.950	127.000	9.525
NKC045CP0	4.500	5.250	0.375	10400	4220	0.225	KRC045	KC045CP0	CSCC045
	114.300	133.350	9.525
NKC047CP0	4.750	5.000	0.375	10930	4360	0.235	KRC047	KC047CP0	CSCC047
	120.650	139.700	9.525
NKC050CP0	5.000	5.750	0.375	11510	4490	0.263	KRC050	KC050CP0	CSCC050
	127.000	146.050	9.525
NKC055CP0	5.500	6.250	0.375	12580	4800	0.268	KRC055	KC055CP0	CSCC055
	139.700	158.750	9.525
NKC060CP0	6.000	6.750	0.375	13650	5070	0.295	KRC060	KC060CP0	CSCC060
	152.400	171.450	9.525
NKC065CP0	6.500	7.250	0.375	14710	5330	0.312	KRC065	KC065CP0	CSCC065
	165.100	184.150	9.525
NKC070CP0	7.000	7.750	0.375	15780	5560	0.340	KRC070	KC070CP0	CSCC070
	177.800	196.850	9.525
NKC075CP0	7.500	8.250	0.375	16850	5820	0.360	KRC075	KC075CP0	CSCC075
	190.500	209.550	9.525
NKC080CP0	8.000	8.750	0.375	17910	6050	0.387	KRC080	KC080CP0	CSCC080
	203.200	222.250	9.525
NKC090CP0	9.000	9.750	0.375	20050	6530	0.450	KRC090	KC090CP0	CSCC090
	228.600	247.650	9.525
NKC100CP0	10.000	10.750	0.375	22180	6980	0.481	KRC100	KC100CP0	CSCC100
	254.000	273.050	9.525
NKC110CP0	11.000	11.750	0.375	24310	7420	0.526	KRC110	KC110CP0	CSCC110
	279.400	298.450	9.525
NKC120CP0	12.000	12.750	0.375	26450	7870	0.567	KRC120	KC120CP0	CSCC120
	304.800	323.850	9.525
NKC140CP0	14.000	14.750	0.375	30720	8670	0.689	KRC140	KC140CP0	CSCC140
	355.600	374.650	9.525
NKC160CP0	16.000	16.750	0.375	35030	9470	0.785	KRC160	KC160CP0	CSCC160
	406.400	425.450	9.525
NKC180CP0	18.000	18.750	0.375	39290	10220	0.880	KRC180	KC180CP0	CSCC180
	457.200	476.250	9.525
NKC200CP0	20.000	20.750	0.375	43560	10980	0.980	KRC200	KC200CP0	CSCC200
	508.000	527.050	9.525

Thin Section Radial Contact Ball Bearings NKD Series (1/2″X 1/2″)

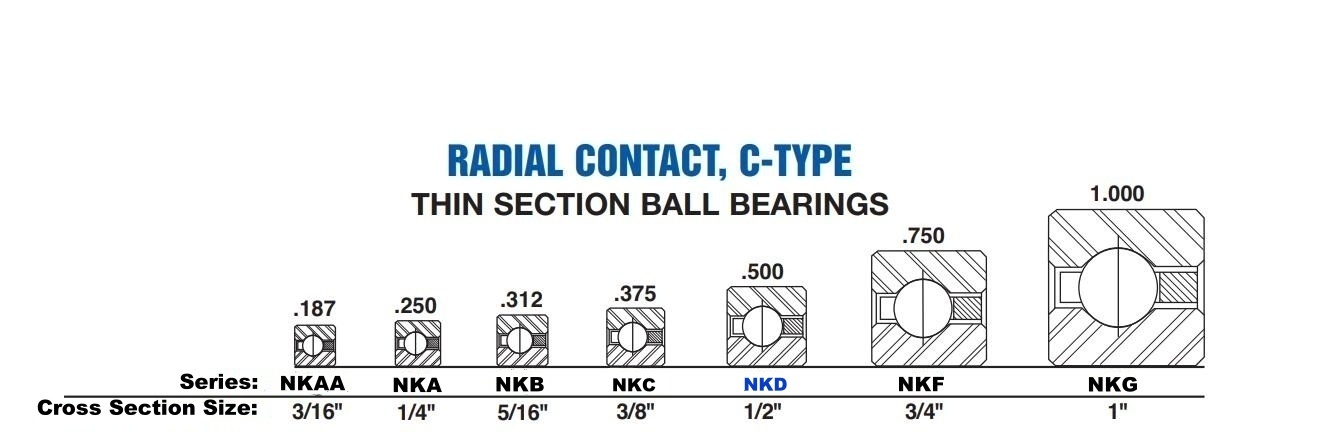

NKD Thin Section Ball Bearing (C-Type) - Cross Section View

C-TYPE–Thin Section Bearings
Seals Type: Open
Series: NKD
Inner Diameters: 4.000 inch (101.6 mm)-20.000 inch (508 mm)
Outer Diameters: 5.000 inch (127.000 mm)- 21.000 inch (533.400 mm)
Weight:0.366 kg-1.750 kg

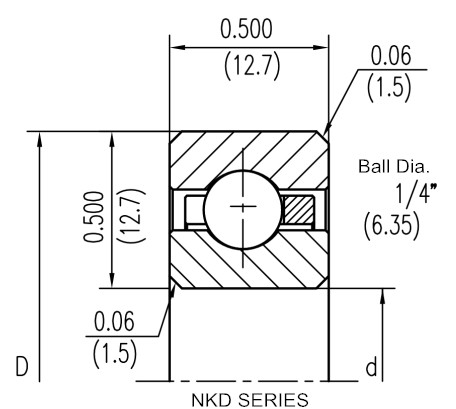

NKD series radial contact ball thin bearing sectional drawing

◆NKD SERIES
Part No	Dimension（inch/mm)			Basic Cap（N)		Weight	Interchange
	d	D	H	Cor	Cr	Kg	NTN	KAYDON	INA
NKD040CP0	4.000	5.000	0.500	13690	6270	0.366	KRD040	KD040CP0	CSCD040
	101.600	127.000	12.700
NKD042CP0	4.250	5.250	0.500	14180	6400	0.386	KRD042	KD042CP0	CSCD042
	107.950	133.350	12.700
NKD045CP0	4.500	5.500	0.500	15200	6710	0.405	KRD045	KD045CP0	CSCD045
	114.300	139.700	12.700
NKD047CP0	4.750	5.750	0.500	15690	6850	0.426	KRD047	KD047CP0	CSCD047
	120.650	146.050	12.700
NKD050CP0	5.000	6.000	0.500	16710	7160	0.454	KRD050	KD050CP0	CSCD050
	127.000	152.400	12.700
NKD055CP0	5.500	6.500	0.500	18230	7560	0.485	KRD055	KD055CP0	CSCD055
	139.700	165.100	12.700
NKD060CP0	6.000	7.000	0.500	19780	8000	0.526	KRD060	KD060CP0	CSCD060
	152.400	177.800	12.700
NKD065CP0	6.500	7.500	0.500	21290	8400	0.566	KRD065	KD065CP0	CSCD065
	165.100	190.500	12.700
NKD070CP0	7.000	8.000	0.500	22800	8800	0.606	KRD070	KD070CP0	CSCD070
	177.800	203.200	12.700
NKD075CP0	7.500	8.500	0.500	24310	9160	0.650	KRD075	KD075CP0	CSCD075
	190.500	215.900	12.700
NKD080CP0	8.000	9.000	0.500	25830	9560	0.694	KRD080	KD080CP0	CSCD080
	203.200	228.600	12.700
NKD090CP0	9.000	10.000	0.500	28890	10310	0.780	KRD090	KD090CP0	CSCD090
	228.600	254.000	12.700
NKD100CP0	10.000	11.000	0.500	31920	10980	0.853	KRD100	KD100CP0	CSCD100
	254.000	279.400	12.700
NKD110CP0	11.000	12.000	0.500	34980	11690	0.934	KRD110	KD110CP0	CSCD110
	279.400	304.800	12.700
NKD120CP0	12.000	13.000	0.500	38010	12360	1.020	KRD120	KD120CP0	CSCD120
	304.800	330.200	12.700
NKD140CP0	14.000	15.000	0.500	44090	13650	1.240	KRD140	KD140CP0	CSCD140
	355.600	381.000	12.700
NKD160CP0	16.000	17.000	0.500	50180	14890	1.410	KRD160	KD160CP0	CSCD160
	406.400	431.800	12.700
NKD180CP0	18.000	19.000	0.500	56230	16050	1.580	KRD180	KD180CP0	CSCD180
	457.200	482.600	12.700
NKD200CP0	20.000	21.000	0.500	62320	17200	1.750	KRD200	KD200CP0	CSCD200
	508.000	533.400	12.700

Thin Section Radial Contact Ball Bearings NKF Series (3/4″X 3/4″)

NKF Thin Section Ball Bearing (C-Type) - Cross Section View

C-TYPE–Thin Section Bearings
Seals Type: Open
Series: NKF
Inner Diameters: 4.000 inch (101.6 mm)-20.000 inch (508 mm)
Outer Diameters: 5.500 inch (139.700 mm)- 21.500 inch (546.100 mm)
Weight:0.875 kg-4.040 kg

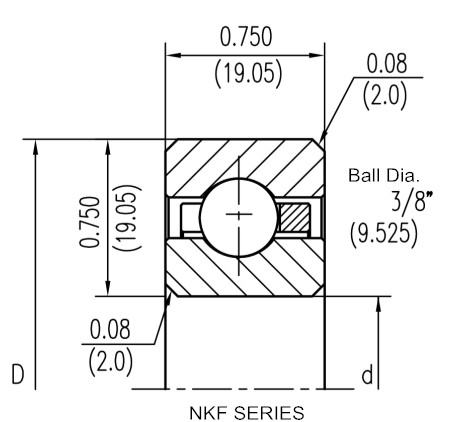

NKF series radial contact thin bearing sectional drawing

◆NKF SERIES
Part No	Dimension（inch/mm)			Basic Cap（N)		Weight	Interchange
	d	D	H	Cor	Cr	Kg	NTN	KAYDON	INA
NKF040CP0	4.000	5.500	0.750	23830	12130	0.875	KRF040	KF040CP0	CSCF040
	101.600	139.700	19.050
NKF042CP0	4.250	5.750	0.750	25070	12580	0.930	KRF042	KF042CP0	CSCF042
	107.950	146.050	19.050
NKF045CP0	4.500	6.000	0.750	26360	12980	0.975	KRF045	KF045CP0	CSCF045
	114.300	152.400	19.050
NKF047CP0	4.750	6.250	0.750	27600	13380	1.040	KRF047	KF047CP0	CSCF047
	120.650	158.750	19.050
NKF050CP0	5.000	6.500	0.750	28850	13780	1.090	KRF050	KF050CP0	CSCF050
	127.000	165.100	19.050
NKF055CP0	5.500	7.000	0.750	31340	14580	1.180	KRF055	KF055CP0	CSCF055
	139.700	177.800	19.050
NKF060CP0	6.000	7.500	0.750	33870	15340	1.240	KRF060	KF060CP0	CSCF060
	152.400	190.500	19.050
NKF065CP0	6.500	8.000	0.750	36360	16090	1.350	KRF065	KF065CP0	CSCF065
	165.100	203.200	19.050
NKF070CP0	7.000	8.500	0.750	38890	16850	1.450	KRF070	KF070CP0	CSCF070
	177.800	215.900	19.050
NKF075CP0	7.500	9.000	0.750	41380	17560	1.560	KRF075	KF075CP0	CSCF075
	190.500	228.600	19.050
NKF080CP0	8.000	9.500	0.750	43920	18230	1.660	KRF080	KF080CP0	CSCF080
	203.200	241.300	19.050
NKF090CP0	9.000	10.500	0.750	48900	19600	1.810	KRF090	KF090CP0	CSCF090
	228.600	266.700	19.050
NKF100CP0	10.000	11.500	0.750	53920	20940	2.020	KRF100	KF100CP0	CSCF100
	254.000	292.100	19.050
NKF110CP0	11.000	12.500	0.750	58940	22230	2.180	KRF110	KF110CP0	CSCF110
	279.400	317.500	19.050
NKF120CP0	12.000	13.500	0.750	63960	23470	2.380	KRF120	KF120CP0	CSCF120
	304.800	342.900	19.050
NKF140CP0	14.000	15.500	0.750	74010	25830	2.720	KRF140	KF140CP0	CSCF140
	355.600	393.700	19.050
NKF160CP0	16.000	17.500	0.750	84010	28140	3.220	KRF160	KF160CP0	CSCF160
	406.400	444.500	19.050
NKF180CP0	18.000	19.500	0.750	94060	30320	3.580	KRF180	KF180CP0	CSCF180
	457.200	495.300	19.050
NKF200CP0	20.000	21.500	0.750	104100	32450	4.040	KRF200	KF200CP0	CSCF200
	508.000	546.100	19.050

Thin Section Radial Contact Ball Bearings NKG Series (1″X 1″)

NKG Thin Section Ball Bearing (C-Type) - Cross Section View

C-TYPE–Thin Section Bearings
Seals Type: Open
Series: NKG
Inner Diameters: 4.000 inch (101.6 mm)-25.000 inch (635.000 mm)
Outer Diameters: 6.000 inch (152.400 mm)- 27.000 inch (685.800 mm)
Weight:0.073 kg-0.68 kg

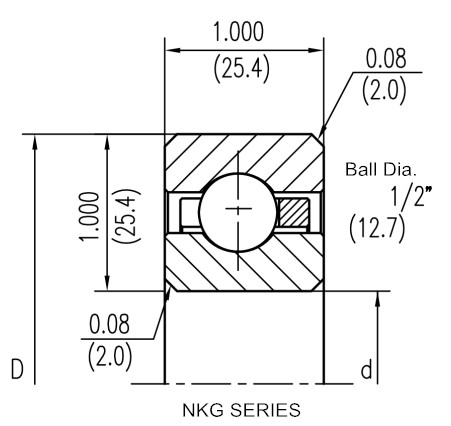

NKG Thin Section Ball Bearing (C-Type) - sectional drawing

◆NKG SERIES
Part No	Dimension（inch/mm)			Basic Cap（N)		Weight	Interchange
	d	D	H	Cor	Cr	Kg	NTN	KAYDON	INA
NKG040CP0	4.000	6.000	1.000	36490	20000	1.650	KRG040	KG040CP0	CSCG040
	101.600	152.400	25.400
NKG042CP0	4.250	6.250	1.000	36490	20000	1.750	KRG042	KG042CP0	CSCG042
	107.950	158.750	25.400
NKG045CP0	4.500	6.500	1.000	38940	20900	1.810	KRG045	KG045CP0	CSCG045
	114.300	165.100	25.400
NKG047CP0	4.750	6.750	1.000	41340	21740	1.910	KRG047	KG047CP0	CSCG047
	120.650	171.450	25.400
NKG050CP0	5.000	7.000	1.000	43780	22580	2.020	KRG050	KG050CP0	CSCG050
	127.000	177.800	25.400
NKG055CP0	5.500	7.500	1.000	46230	23430	2.170	KRG055	KG055CP0	CSCG055
	139.700	190.500	25.400
NKG060CP0	6.000	8.000	1.000	51070	25030	2.310	KRG060	KG060CP0	CSCG060
	152.400	203.200	25.400
NKG065CP0	6.500	8.500	1.000	53520	25830	2.470	KRG065	KG065CP0	CSCG065
	165.100	215.900	25.400
NKG070CP0	7.000	9.000	1.000	58360	27380	2.670	KRG070	KG070CP0	CSCG070
	177.800	228.600	25.400
NKG075CP0	7.500	9.500	1.000	60810	28140	2.830	KRG075	KG075CP0	CSCG075
	190.500	241.300	25.400
NKG080CP0	8.000	10.000	1.000	65650	29600	3.000	KRG080	KG080CP0	CSCG080
	203.200	254.000	25.400
NKG090CP0	9.000	11.000	1.000	72990	31780	3.300	KRG090	KG090CP0	CSCG090
	228.600	279.400	25.400
NKG100CP0	10.000	12.000	1.000	80280	33870	3.650	KRG100	KG100CP0	CSCG100
	254.000	304.800	25.400
NKG110CP0	11.000	13.000	1.000	87570	35870	3.960	KRG110	KG110CP0	CSCG110
	279.400	330.200	25.400
NKG120CP0	12.000	14.000	1.000	94860	37830	4.320	KRG120	KG120CP0	CSCG120
	304.800	355.600	25.400
NKG140CP0	14.000	16.000	1.000	109440	41600	4.960	KRG140	KG140CP0	CSCG140
	355.600	406.400	25.400
NKG160CP0	16.000	18.000	1.000	124060	45250	5.650	KRG160	KG160CP0	CSCG160
	406.400	457.200	25.400
NKG180CP0	18.000	20.000	1.000	138640	48720	6.280	KRG180	KG180CP0	CSCG180
	457.200	508.000	25.400
NKG200CP0	20.000	22.000	1.000	153220	52100	7.530	KRG200	KG200CP0	CSCG200
	508.000	558.800	25.400
NKG250CP0	25.000	27.000	1.000	174000	71000	8.850	KRG250	KG250CP0	CSCG250
	635.000	685.800	25.400
