Metric Sealed Deep Groove Ball Bearing J025-J360CP0 Series(d: 25mm-360mm D: 41mm-400mm)

Sealed metric ball bearing type C (deep groove ball structure) is a single row bearing, which is able to carry the radial loads, the sealing ring shall be used on one side or double sides of the bearing according to service environment.

Send Inquiry

Metric Sealed Deep Groove Ball Bearing J025-J360CP0 Series(d: 25mm-360mm D: 41mm-400mm)

Metric sealed ball bearing (deep groove structure) is consisted of an outer ring, an inner ring, a group of steel balls and a cage, which mainly carries the radial loads, generally, the seal ring shall be used on double sides, and it can also be used on one side according to service environment of bearings. The sealing material is nitrile rubber.

Metric ball bearings are mainly used in instrumentation, agricultural machinery, construction machinery, engineering machinery, etc.

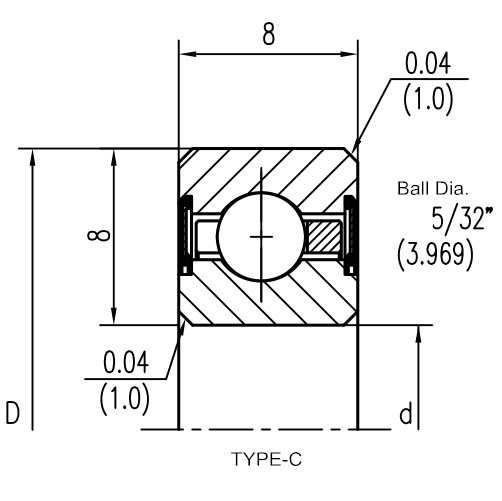

Part No	Dimension（mm)			Basic Cap（kg)		Weight	Interchange
Part No	d	D	H	Cor	Cr	Kg	KAYDON
NJ02508CP0	25	41	8	303	255	0.06	J02508CP0
NJ05008CP0	50	66	8	556	350	0.08	J05008CP0
NJ06008CP0	60	76	8	656	384	0.09	J06008CP0
NJ07008CP0	70	86	8	758	417	0.10	J07008CP0
NJ08008CP0	80	96	8	859	448	0.11	J08008CP0
NJ09008CP0	90	106	8	959	478	0.13	J09008CP0
NJ10008CP0	100	116	8	1061	507	0.14	J10008CP0
NJ11008CP0	110	126	8	1162	534	0.15	J11008CP0
NJ12008CP0	120	136	8	1262	561	0.16	J12008CP0
NJ13008CP0	130	146	8	1364	588	0.17	J13008CP0
NJ14008CP0	140	156	8	1465	613	0.18	J14008CP0
NJ15008CP0	150	166	8	1565	638	0.20	J15008CP0
NJ16008CP0	160	176	8	1666	662	0.20	J16008CP0
NJ17008CP0	170	186	8	1767	686	0.20	J17008CP0

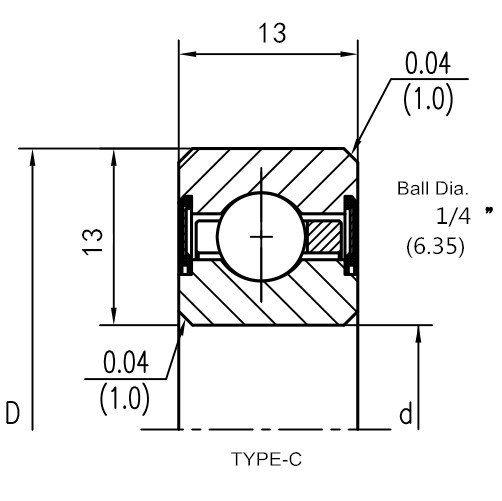

Part No	Dimension（mm)			Weight	Interchange
Part No	d	D	H	Kg	KAYDON
NJ02513CP0	25	51	13	0.11	J02513CP0
NJ05013CP0	50	76	13	0.18	J05013CP0
NJ06013CP0	60	86	13	0.21	J06013CP0
NJ07013CP0	70	96	13	0.24	J07013CP0
NJ08013CP0	80	106	13	0.26	J08013CP0
NJ09013CP0	90	116	13	0.29	J09013CP0
NJ10013CP0	100	126	13	0.32	J10013CP0
NJ11013CP0	110	136	13	0.35	J11013CP0
NJ12013CP0	120	146	13	0.38	J12013CP0
NJ13013CP0	130	156	13	0.41	J13013CP0
NJ14013CP0	140	166	13	0.44	J14013CP0
NJ15013CP0	150	176	13	0.46	J15013CP0
NJ16013CP0	160	186	13	0.49	J16013CP0
NJ17013CP0	170	196	13	0.52	J17013CP0
NJ18013CP0	180	206	13	0.55	J18013CP0
NJ19013CP0	190	216	13	0.58	J19013CP0
NJ20013CP0	200	226	13	0.61	J20013CP0
NJ25013CP0	250	276	13	0.75	J25013CP0
NJ30013CP0	300	326	13	0.89	J30013CP0
NJ32013CP0	320	346	13	0.95	J32013CP0
NJ34013CP0	340	366	13	1.01	J34013CP0
NJ36013CP0	360	386	13	1.06	J36013CP0

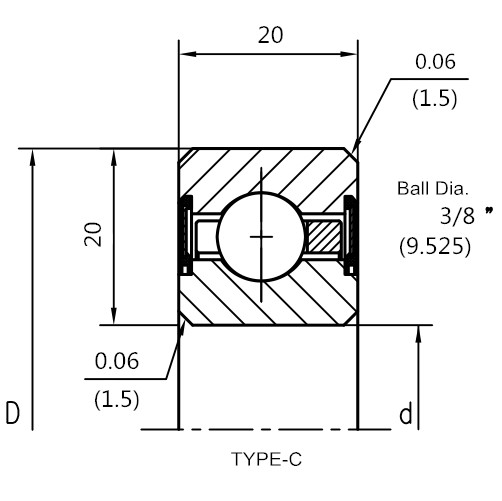

Part No	Dimension（mm)			Weight	Interchange
Part No	d	D	H	Kg	KAYDON
NJ02520CP0	25	65	20	0.34	J02520CP0
NJ05020CP0	50	90	20	0.51	J05020CP0
NJ06020CP0	60	100	20	0.58	J06020CP0
NJ07020CP0	70	110	20	0.65	J07020CP0
NJ08020CP0	80	120	20	0.72	J08020CP0
NJ09020CP0	90	130	20	0.80	J09020CP0
NJ10020CP0	100	140	20	0.86	J10020CP0
NJ11020CP0	110	150	20	0.94	J11020CP0
NJ12020CP0	120	160	20	1.01	J12020CP0
NJ13020CP0	130	170	20	1.08	J13020CP0
NJ14020CP0	140	180	20	1.15	J14020CP0
NJ15020CP0	150	190	20	1.20	J15020CP0
NJ16020CP0	160	200	20	1.30	J16020CP0
NJ17020CP0	170	210	20	1.40	J17020CP0
NJ18020CP0	180	220	20	1.50	J18020CP0
NJ19020CP0	190	230	20	1.50	J19020CP0
NJ20020CP0	200	240	20	1.50	J20020CP0
NJ25020CP0	250	290	20	2.10	J25020CP0
NJ30020CP0	300	340	20	2.30	J30020CP0
NJ32020CP0	320	360	20	2.42	J32020CP0
NJ34020CP0	340	380	20	2.54	J34020CP0
NJ36020CP0	360	400	20	2.70	J36020CP0
