Metric Angular Contact Ball Bearing K025-K360AR0 Series (d:25mm-360mm D:41mm-400mm)

Metric ball bearing type A (angular contact ball structure) can carry larger axial loads while carring a portion of radial loads the speed of the bearing is higher than that of four point contact bearing and deep groove bearing.
The rotating speed of angular contact ball bearing is much higher than that of four point contact and deep groove ball bearings.

Send Inquiry

Metric Angular Contact Ball Bearing K025-K360AR0 Series (d:25mm-360mm D:41mm-400mm)

Metric angular contact ball bearing type A can carry a larger axial load, the rotating speed of the bearing is higher than that of a four-point contact bearing and deep groove bearing. It can also carry a portion of the radial load and can be used in matched sets (Like face-to-face arrangement, back-to-back arrangement, and Tandem bearing sets) for use and installation easily. Three sizes of thickness are available: 8mm 13mm and 20mm.

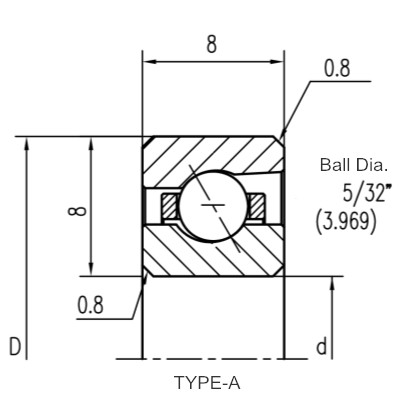

Part No	Dimension（mm)			Basic Cap（kg)				Weight	Interchange
Part No	d	D	H	Cor	Cr	Coa	Ca	Kg	KAYDON
NK02508AR0	25	41	8	372	272	1073	561	0.06	K02508AR0
NK05008AR0	50	66	8	656	367	1894	819	0.08	K05008AR0
NK06008AR0	60	76	8	787	408	2273	925	0.09	K06008AR0
NK07008AR0	70	86	8	896	440	2588	1099	0.10	K07008AR0
NK08008AR0	80	96	8	1006	470	2903	1090	0.12	K08008AR0
NK09008AR0	90	106	8	1137	505	3282	1182	0.13	K09008AR0
NK10008AR0	100	116	8	1246	533	3598	1257	0.14	K10008AR0
NK11008AR0	110	126	8	1356	561	3914	1329	0.15	K11008AR0
NK12008AR0	120	136	8	1465	587	4229	1400	0.16	K12008AR0
NK13008AR0	130	146	8	1596	618	4608	1482	0.17	K13008AR0
NK14008AR0	140	156	8	1706	643	4923	1549	0.18	K14008AR0
NK15008AR0	150	166	8	1815	667	5239	1615	0.19	K15008AR0
NK16008AR0	160	176	8	1946	696	5618	1691	0.20	K16008AR0
NK17008AR0	170	186	8	2055	720	5933	1754	0.21	K17008AR0
NK18008AR0	180	196	8	2165	742	6249	1816	0.22	K18008AR0
NK19008AR0	190	206	8	2296	769	6628	1889	0.23	K19008AR0
NK20008AR0	200	216	8	2405	791	6944	1948	0.23	K20008AR0
NK25008AR0	250	266	8	2974	897	8585	2244	0.28	K25008AR0
NK30008AR0	300	316	8	3564	999	10289	2532	0.33	K30008AR0
NK32008AR0	320	336	8	3805	1039	10983	2645	0.36	K32008AR0
NK34008AR0	340	356	8	4023	1073	11614	2745	0.38	K34008AR0
NK36008AR0	360	376	8	4264	1110	12309	2854	0.40	K36008AR0

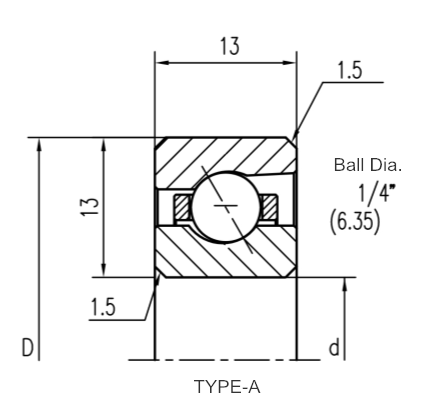

Part No	Dimension（mm)			Basic Cap（kg)				Weight	Interchange
Part No	d	D	H	Cor	Cr	Coa	Ca	Kg	KAYDON
NK02513AR0	25	51	13	616	554	1778	1075	0.13	K02513AR0
NK05013AR0	50	76	13	1064	725	3070	1547	0.20	K05013AR0
NK06013AR0	60	86	13	1232	782	3555	1706	0.22	K06013AR0
NK07013AR0	70	96	13	1456	860	4201	1906	0.25	K07013AR0
NK08013AR0	80	106	13	1623	913	4686	2050	0.28	K08013AR0
NK09013AR0	90	116	13	1791	964	5171	2190	0.31	K09013AR0
NK10013AR0	100	126	13	1959	1013	5656	2324	0.34	K10013AR0
NK11013AR0	110	136	13	2127	1061	6141	2455	0.37	K11013AR0
NK12013AR0	120	146	13	2295	1108	6625	2583	0.39	K12013AR0
NK13013AR0	130	156	13	2519	1171	7272	2748	0.42	K13013AR0
NK14013AR0	140	166	13	2687	1215	7757	2869	0.45	K14013AR0
NK15013AR0	150	176	13	2855	1258	8241	2987	0.48	K15013AR0
NK16013AR0	160	186	13	3023	1301	8726	3104	0.51	K16013AR0
NK17013AR0	170	196	13	3191	1342	9211	3217	0.54	K17013AR0
NK18013AR0	180	206	13	3359	1382	9696	3329	0.56	K18013AR0
NK19013AR0	190	216	13	3527	1422	10181	3439	0.59	K19013AR0
NK20013AR0	200	226	13	3750	1476	10827	3583	0.62	K20013AR0
NK25013AR0	250	276	13	4590	1659	13251	4100	0.76	K25013AR0
NK30013AR0	300	326	13	5486	1840	15837	4618	0.90	K30013AR0
NK32013AR0	320	346	13	5822	1904	16806	4804	0.96	K32013AR0
NK34013AR0	340	366	13	6213	1978	17937	5017	1.02	K34013AR0
NK36013AR0	360	386	13	6550	2038	18907	5196	1.07	K36013AR0

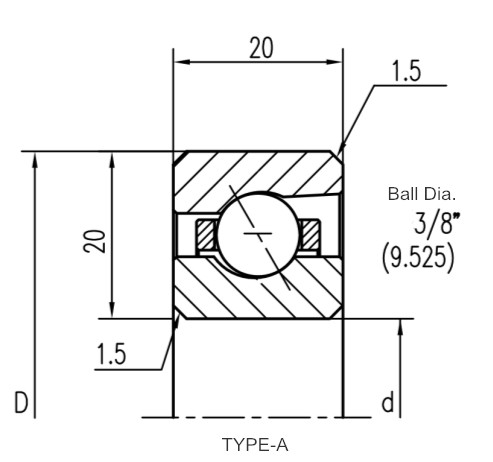

Part No	Dimension（mm)			Basic Cap（kg)				Weight	Interchange
Part No	d	D	H	Cor	Cr	Coa	Ca	Kg	KAYDON
NK02520AR0	25	65	20	1134	1155	3272	2115	0.31	K02520AR0
NK05020AR0	50	90	20	1889	1460	5454	2973	0.49	K05020AR0
NK06020AR0	60	100	20	2141	1547	6181	3231	0.56	K06020AR0
NK07020AR0	70	110	20	2393	1633	6908	3480	0.62	K07020AR0
NK08020AR0	80	120	20	2645	1717	7635	3720	0.69	K08020AR0
NK09020AR0	90	130	20	3023	1851	8726	4067	0.77	K09020AR0
NK10020AR0	100	140	20	3275	1929	9453	4290	0.84	K10020AR0
NK11020AR0	110	150	20	3527	2005	10181	4507	0.91	K11020AR0
NK12020AR0	120	160	20	3778	2080	10908	4719	0.97	K12020AR0
NK13020AR0	130	170	20	4030	2154	11635	4927	1.04	K13020AR0
NK14020AR0	140	180	20	4282	2226	12362	5130	1.11	K14020AR0
NK15020AR0	150	190	20	4660	2339	13453	5427	1.19	K15020AR0
NK16020AR0	160	200	20	4912	2407	14180	5621	1.26	K16020AR0
NK17020AR0	170	210	20	5146	2474	14907	5811	1.32	K17020AR0
NK18020AR0	180	220	20	5416	2540	15634	5999	1.39	K18020AR0
NK19020AR0	190	230	20	5668	2605	16361	6183	1.46	K19020AR0
NK20020AR0	200	240	20	6045	2706	17452	6455	1.54	K20020AR0
NK25020AR0	250	290	20	7431	3041	21452	7408	1.89	K25020AR0
NK30020AR0	300	340	20	8691	3317	25088	8222	2.23	K30020AR0
NK32020AR0	320	360	20	9321	3454	26906	8615	2.37	K32020AR0
NK34020AR0	340	380	20	9824	3556	28360	8923	2.51	K34020AR0
NK36020AR0	360	400	20	10454	3685	30178	9300	2.66	K36020AR0
