Excellence in Thin-Walled Design: The NKAA10XP0 – Winning Market Trust Through Specialized, Precision-Engineered Innovation

At the "joints" of high-end equipment—such as industrial robots, medical devices, and harmonic reducers—sits a bearing weighing a mere 12 grams. With its ultra-thin, micron-level profile, it provides the critical support necessary for stable, high-speed, and high-precision operation. This is the NKAA10XP0, a flagship product from Luoyang Thin-Walled Precision Bearing Co., Ltd.

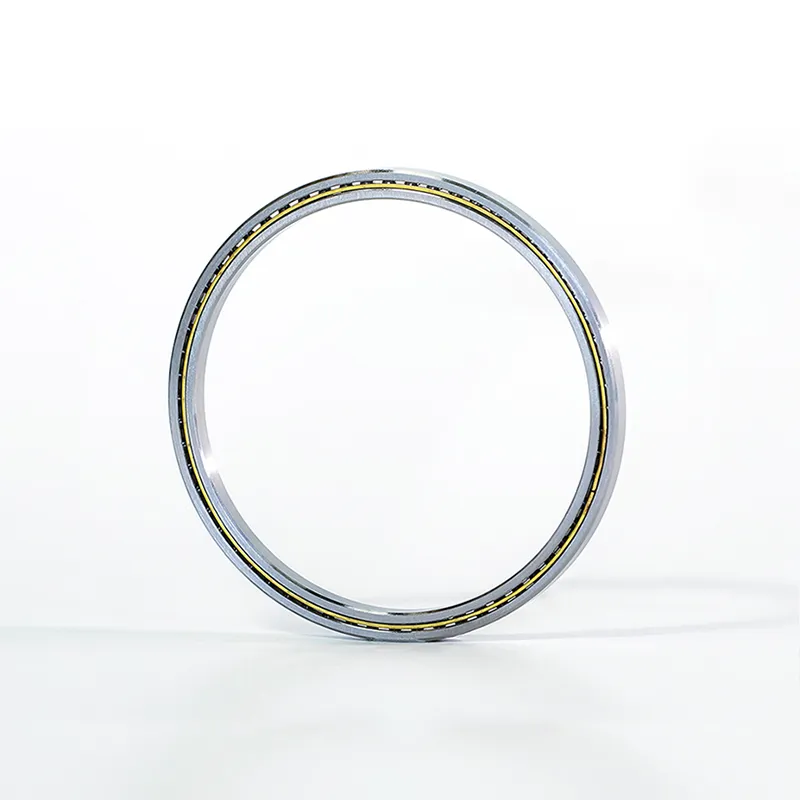

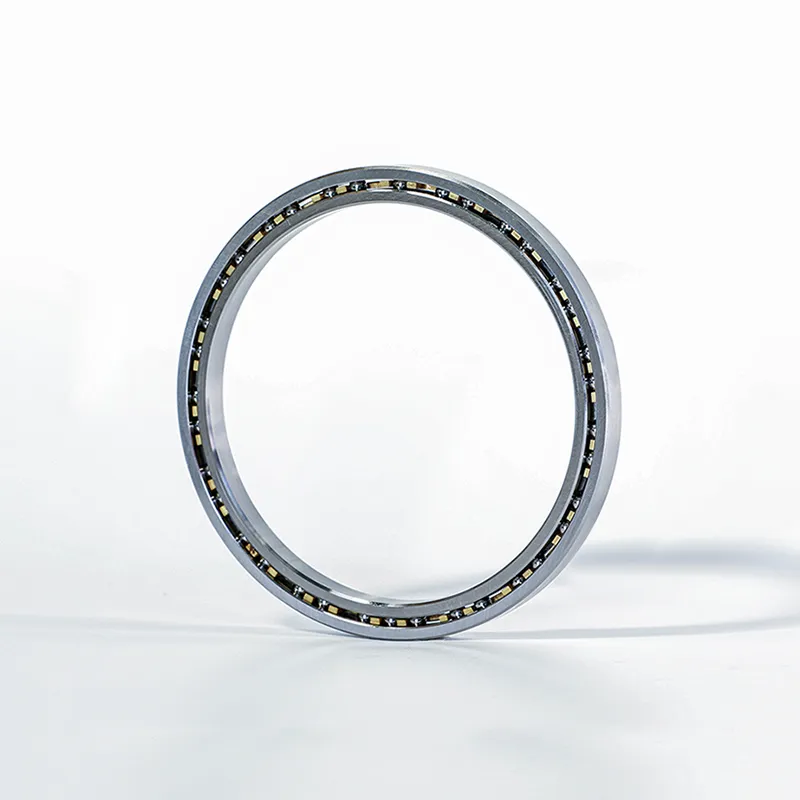

Introducing the NKAA10XP0

The NKAA10XP0 belongs to the company’s series of constant-section, thin-walled, four-point contact ball bearings (X-type). It features an inner diameter of 25.400 mm (1 inch), an outer diameter of 34.925 mm, and a cross-sectional thickness of just 4.762 mm. Weighing only 0.012 kg—lighter than a coin—it serves as a direct, globally interchangeable alternative to major international models such as the NTN KXS010, KAYDON KAA10XL0, and INA CSXAA010-TN. For engineers designing high-end equipment, it is the ideal solution when seeking a precise, drop-in replacement.

The NKAA10XP0 is crafted from premium materials, such as high-carbon chromium bearing steel (GCr15) or 440C stainless steel, with rolling elements available in bearing steel, stainless steel, or ceramic. Despite its ultra-thin cross-section, it delivers exceptional load-bearing capacity: a static axial load rating of 3250 N—approximately 27,000 times its own weight—and a static radial load rating of 1290 N. The high purity and uniform microstructure of the materials ensure superior reliability and a long service life. With over a decade of specialization in thin-section bearings, our company employs standardized, end-to-end process control to embed a "high-standard" DNA into every unit.

"Precision" — Precision manufacturing, master-level craftsmanship.

Leveraging CNC machining and specialized inspection equipment, and subjected to rigorous multi-stage verification, the NKAA10XP0 achieves low friction, low noise, high rigidity, and high rotational accuracy. Our products are available in precision classes P6, P5, P4, and P2. In applications such as robotic joints and precision machine tools, micron-level rotational accuracy is a critical determinant of overall system performance—this is precisely where the value of the NKAA10XP0 lies.

"Distinctive"— Unique Structure, Specialized Capabilities

A constant cross-section and thin-wall design serve as the hallmark of these bearings: the cross-section remains uniform regardless of the inner diameter. The four-point contact design—where steel balls make contact with the raceways at four distinct points—allows the bearing to accommodate radial, axial, and moment loads simultaneously from both directions. A single bearing can often replace a pair of angular contact bearings or tapered roller bearings, enabling more streamlined equipment design and significant weight reduction. Their ultra-thin cross-section offers substantial potential for optimizing both size and weight in light-to-medium-duty, intermittently rotating applications.

"Innovative" — R&D-Driven, Tailored Customization

The company operates an enterprise R&D center for thin-wall precision bearings—recognized by the Luoyang Municipal Bureau of Science and Technology—dedicated to transforming innovative breakthroughs into tangible product performance. The NKAA10XP0 series, for instance, can be customized with specific internal preloads and clearances (such as high-rigidity or zero-clearance configurations) to meet diverse operational requirements. With a product range spanning inner diameters from 1 to 40 inches—encompassing seven open-type and five sealed-type series—the company consistently delivers "innovative" solutions for high-end and emerging sectors, including industrial robotics, textile machinery, harmonic reducers, mining and construction equipment, and medical devices.

Highly Valued by Users

Quality is the ultimate calling card. In recent years, the company’s constant cross-section thin-wall bearings have earned the trust and repeat business of customers both domestically and internationally. One overseas client, for example, placed a follow-up order for 200 units of the NKD065XP0 model just one week after receiving their initial shipment of 50 NKA050XP0 bearings. The same client has also scaled up their orders for crossed-roller bearings from the hundreds to the thousands. Such recurring orders serve as the most compelling endorsement of the company’s product quality and service. Luoyang Thin-Wall Precision Bearing Co., Ltd.

Conclusion

True excellence is revealed in the "thinness" of the design; precision paves the way for long-term success. With its commitment to being "high-end, precise, specialized, and innovative," Luoyang Thin-Walled Precision Bearing Co., Ltd. demonstrates an unwavering dedication to precision manufacturing. Moving forward, the company will continue to forge quality through craftsmanship and capture markets through innovation, bringing more "Chinese-made thin-walled bearings" to the global stage.
