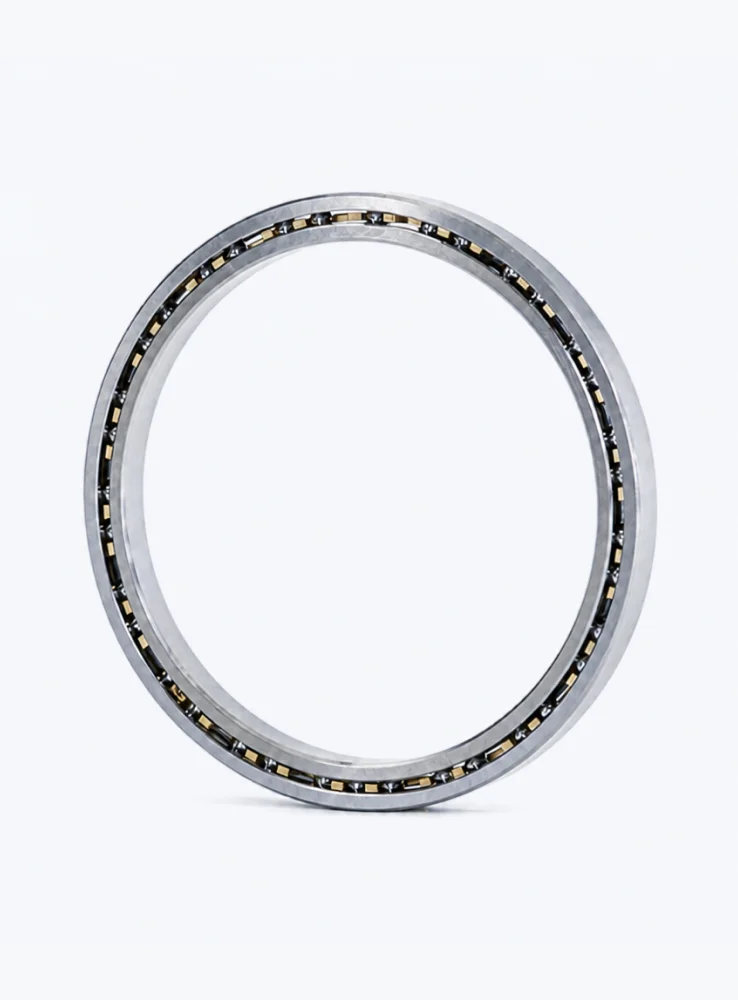

61900 Series

What Is a 61900 Series Standard Thin Section Bearing?

The 61900 Series standard thin section bearing is a deep groove ball bearing designed with an ultra-thin cross-section and compact structure. Engineers widely use this bearing series in equipment that requires lightweight construction, limited installation space, stable rotational accuracy, and reduced friction torque. Compared with conventional deep groove ball bearings, the 61900 Series achieves a smaller radial section while still maintaining reliable load-carrying capability and smooth high-speed performance.

Manufacturers often select the 61900 Series for applications where equipment designers need to reduce overall system size without sacrificing operational stability. These bearings commonly appear in robotics, precision instruments, medical devices, automation systems, compact motors, aerospace assemblies, semiconductor equipment, optical devices, and lightweight industrial machinery.

The 61900 Series belongs to the metric thin-section bearing family. Its compact profile allows designers to minimize housing dimensions and reduce rotating mass, which helps improve energy efficiency and equipment responsiveness.

Structural Characteristics of 61900 Series Bearings

The 61900 Series adopts a single-row deep groove ball bearing structure. Although the bearing body remains thin, the internal raceway geometry still supports stable radial and axial load transmission.

Thin Cross-Section Design

The most recognizable feature of the 61900 Series is its slim radial wall thickness. This design enables the bearing to fit into narrow installation spaces where standard bearings cannot operate efficiently.

A thinner cross-section offers several engineering advantages:

Reduced overall equipment weight

Smaller housing dimensions

Lower rotational inertia

Faster acceleration response

Improved energy efficiency

Compact mechanical layouts

For portable equipment and lightweight automation systems, these advantages directly contribute to better product performance.

Deep Groove Raceway Structure

The deep groove raceway geometry allows the bearing to support:

Radial loads

Moderate axial loads in both directions

Combined loads during high-speed rotation

The optimized raceway curvature also helps maintain smooth ball movement, which reduces vibration and operating noise during continuous operation.

High Rotational Accuracy

Manufacturers usually produce 61900 series bearings with precise dimensional tolerances and stable raceway finishing processes. This manufacturing precision helps maintain rotational accuracy in high-speed or sensitive applications.

Precision rotation becomes especially important in:

Medical scanning systems

High-speed electric motors

Optical positioning devices

Semiconductor handling equipment

Measuring instruments

Low Friction and Low Heat Generation

The slim structure and optimized internal geometry help reduce friction torque during operation. Lower friction directly decreases heat generation, which improves bearing lifespan and operating stability.

This characteristic becomes highly valuable in continuous-duty systems that run for long periods without interruption.

Common Materials Used in 61900 Series Bearings

Material selection directly influences bearing durability, corrosion resistance, speed capability, and service life. Manufacturers typically offer several material options according to operating conditions.

Chrome Steel Bearings

High-carbon chromium steel remains the most common material for standard industrial applications. This material provides:

High hardness

Good wear resistance

Stable fatigue strength

Reliable dimensional stability

Chrome steel bearings suit general automation equipment, electric motors, reducers, and industrial machinery.

Stainless Steel Bearings

Stainless steel versions perform well in humid or corrosive environments. Industries often use stainless steel 61900 Series bearings in:

Food processing equipment

Medical instruments

Marine devices

Pharmaceutical machinery

Laboratory systems

Stainless steel bearings provide stronger corrosion resistance while maintaining acceptable mechanical strength.

Ceramic Hybrid Bearings

Some high-performance applications use ceramic ball hybrid structures. In these bearings, manufacturers combine steel rings with ceramic balls.

Ceramic hybrid bearings offer:

Higher rotational speed

Reduced friction

Better electrical insulation

Lower thermal expansion

Longer lubrication intervals

These advantages make hybrid bearings suitable for precision motors, vacuum equipment, and high-speed spindles.

Cage Types and Their Functions

The cage controls ball spacing and guides rolling motion inside the bearing. Different cage materials influence speed capability, lubrication behavior, and operating noise.

Steel Cage

Steel cages provide excellent strength and dimensional stability. Industrial motors and general machinery frequently use steel cage designs because they perform reliably under moderate loads and high rotational speeds.

Nylon Cage

Nylon cages reduce operating noise and rotational friction. Lightweight automation systems often prefer nylon cages because they support smoother operation and lower vibration.

Brass Cage

Brass cages perform well under high-speed and high-temperature operating conditions. Precision machinery and heavy-duty applications may use brass cages for enhanced stability.

Typical Applications of 61900 Series Thin Section Bearings

The 61900 Series serves a wide range of industries because the bearing balances compact dimensions with dependable rotational performance.

Robotics and Automation

Modern robotic systems require lightweight rotating components with stable precision. Engineers commonly install 61900 Series bearings in:

Robotic joints

Servo systems

Automated grippers

Compact gear mechanisms

Collaborative robots

The thin-section structure helps reduce joint weight while maintaining smooth movement accuracy.

Medical Equipment

Medical systems demand quiet operation, compact design, and long-term reliability. The 61900 Series often appears in:

Dental equipment

Surgical instruments

Imaging systems

Diagnostic devices

Medical pumps

Low vibration and stable rotation help improve equipment precision during sensitive procedures.

Semiconductor Equipment

Semiconductor manufacturing environments require high cleanliness and positioning accuracy. Thin section bearings support:

Wafer handling systems

Vacuum transfer equipment

Precision positioning platforms

High-speed automation modules

Manufacturers may use special lubrication or stainless materials to meet cleanroom requirements.

Electric Motors

Compact electric motors benefit from the bearing’s low friction torque and lightweight structure. The 61900 Series improves:

Rotational efficiency

Motor responsiveness

Noise reduction

Energy consumption control

These advantages support both industrial motors and consumer electronic products.

Aerospace Systems

Aircraft and aerospace equipment prioritize weight reduction and reliability. Thin section bearings help engineers achieve lighter mechanical structures while maintaining operational safety.

Applications include:

Navigation systems

Actuation assemblies

Instrumentation units

Lightweight rotating modules

Advantages of 61900 Series Bearings

Space-Saving Installation

The slim cross-section allows engineers to reduce equipment dimensions significantly. Compact machinery designers often select the 61900 Series specifically to optimize limited internal space.

Lightweight Mechanical Design

Lower bearing weight reduces the total mass of moving components. This characteristic helps improve dynamic performance and lower energy consumption.

Smooth High-Speed Rotation

The optimized raceway design supports stable high-speed operation with reduced vibration and friction.

Long Service Life

High-quality materials, precision grinding, and proper lubrication contribute to extended operational lifespan under normal working conditions.

Lower Maintenance Requirements

Many 61900 Series bearings operate with sealed structures and long-life grease lubrication, which minimizes maintenance frequency.

Open, Shielded, and Sealed Configurations

Manufacturers usually provide multiple sealing configurations according to operating environments.

Open Type Bearings

Open bearings offer the lowest friction and highest speed capability. These bearings suit clean environments where external contamination remains limited.

Metal Shield Bearings

Metal shields protect internal components from dust and debris while maintaining relatively low friction.

Rubber Sealed Bearings

Rubber seals provide stronger protection against moisture, contaminants, and lubricant leakage. Harsh industrial environments often require sealed bearing configurations.

Factors to Consider When Selecting a 61900 Series Bearing

Proper bearing selection directly affects equipment performance and service life.

Load Requirements

Engineers should evaluate both radial and axial loads before selecting a bearing model. Excessive loading may shorten bearing lifespan or reduce rotational accuracy.

Speed Conditions

High-speed applications require careful consideration of cage material, lubrication type, and sealing configuration.

Operating Environment

Environmental factors such as humidity, dust, chemicals, and temperature influence material and seal selection.

Lubrication Method

Proper lubrication reduces wear, controls heat generation, and extends service life. Grease selection should match operating speed and temperature conditions.

Precision Requirements

Precision equipment may require higher tolerance grades to maintain rotational stability and positioning accuracy.

Lubrication and Maintenance Recommendations

Although many thin section bearings require minimal maintenance, proper lubrication management still plays a critical role in long-term reliability.

Grease Lubrication

Grease lubrication remains the most common option because it provides:

Simple maintenance

Good sealing compatibility

Long service intervals

Stable low-speed and medium-speed operation

Oil Lubrication

High-speed or high-temperature systems may require oil lubrication to improve heat dissipation and rotational stability.

Maintenance Tips

Operators should regularly inspect:

Bearing temperature

Rotational noise

Vibration levels

Lubricant condition

Seal integrity

Early inspection helps prevent unexpected equipment downtime.

Why Precision Manufacturing Matters

The performance of a thin section bearing depends heavily on manufacturing quality. Precision grinding, heat treatment stability, and strict dimensional control directly influence rotational accuracy and service life.

Reliable manufacturers typically focus on:

Raceway surface finishing

Material purity

Heat treatment consistency

Assembly cleanliness

Noise and vibration testing

Stable manufacturing quality helps ensure consistent bearing performance across different production batches.

How 61900 Series Bearings Improve Equipment Efficiency

Many modern industries continue to pursue smaller, lighter, and more energy-efficient mechanical systems. The 61900 Series supports these goals by reducing mechanical resistance and minimizing installation space requirements.

When engineers integrate thin section bearings into compact equipment, they can often achieve:

Faster system response

Improved transmission efficiency

Reduced motor load

Lower operating noise

Better thermal performance

Longer component lifespan

These benefits contribute directly to improved equipment reliability and reduced operating costs.
