CRBH Type Crossed Roller Bearings

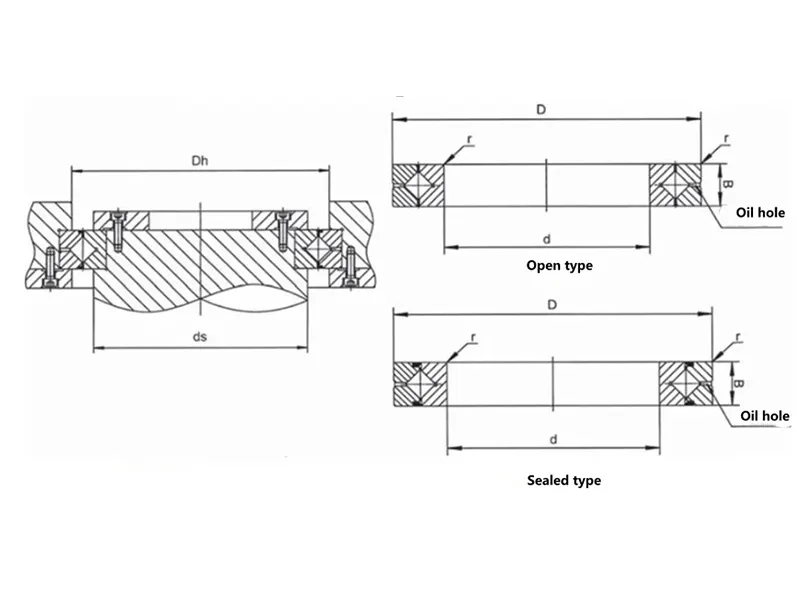

CRBH Type Crossed Roller Bearings Details

CRBH type crossed roller bearings are a specialized category of precision bearings designed to deliver extremely high rotational accuracy and rigidity in compact mechanical systems. These bearings are widely used in industrial equipment where space is limited but performance requirements are strict, such as robotics, precision rotary tables, semiconductor manufacturing machines, medical imaging devices, and high-end automation systems.

Unlike conventional bearing structures, the CRBH type adopts a cylindrical crossed roller arrangement, where rollers are alternately oriented at 90 degrees within a single raceway. This structural design allows the bearing to simultaneously withstand radial loads, axial loads, and moment loads. As a result, engineers can simplify mechanical designs by replacing multiple bearing assemblies with a single compact unit while maintaining or even improving system stiffness and accuracy.

Structural Features and Engineering Advantages

The core advantage of CRBH type crossed roller bearings lies in their integrated raceway and thin-section design. The inner and outer rings are manufactured as a one-piece structure without a segmented assembly, which significantly reduces deformation under load. This improves rotational precision and ensures stable performance even under continuous high-load conditions.

The crossed roller configuration provides line contact rather than point contact, which increases load distribution efficiency. This structure reduces elastic deformation during operation and enhances rotational smoothness. Engineers often select CRBH bearings when they require micrometer-level positioning accuracy or ultra-low rotational resistance in controlled environments.

Another important design advantage is the absence of a spacer cage between rollers. This allows more rollers to be placed within the same space, increasing load capacity without enlarging the bearing footprint. The result is a high rigidity-to-size ratio, which is particularly valuable in compact mechanical systems.

Performance Characteristics

CRBH type crossed roller bearings are engineered to maintain stable performance in demanding operating conditions. Their key performance characteristics include:

High rotational accuracy suitable for precision positioning systems

Excellent rigidity under combined radial, axial, and moment loads

Compact structure that reduces installation space requirements

Smooth and stable motion with minimal friction variation

Long service life under properly lubricated and aligned conditions

These performance features make the CRBH series particularly suitable for applications where motion stability directly affects product quality or machining accuracy.

Application Scenarios

CRBH type crossed roller bearings are commonly used in industries that require high-precision motion control. In industrial robotics, they are often installed in robotic arms and rotary joints to ensure stable multi-axis movement. In CNC machining equipment, they support rotary tables that require precise angular positioning during cutting and milling operations.

In semiconductor and electronics manufacturing, CRBH bearings are used in wafer handling systems, inspection equipment, and alignment platforms where even minimal deviation can affect yield rates. Medical device manufacturers also rely on these bearings in CT scanners and precision imaging platforms, where smooth and accurate rotation is essential for imaging clarity.

Material Selection and Manufacturing Quality

The performance of CRBH type crossed roller bearings is highly dependent on material quality and manufacturing precision. High-carbon chromium bearing steel is commonly used to ensure hardness, wear resistance, and fatigue strength. Advanced heat treatment processes improve surface durability while maintaining core toughness.

Precision grinding technology is applied to raceway surfaces to achieve extremely low surface roughness and tight dimensional tolerances. This ensures consistent roller movement and reduces vibration during operation. Many manufacturers also implement strict inspection standards for roundness, hardness uniformity, and load testing to guarantee product reliability.

Installation and Maintenance Considerations

Proper installation plays a critical role in maximizing the performance of CRBH bearings. Engineers must ensure that mounting surfaces are flat, clean, and free from deformation. Misalignment during installation can reduce rotational accuracy and shorten service life.

Lubrication is another important factor. Depending on the application environment, users may choose grease or oil lubrication to reduce friction and prevent wear. Regular maintenance and inspection help maintain stable performance over long operating cycles.

Why Choose CRBH Type Crossed Roller Bearings

Compared with traditional bearing solutions, CRBH type crossed roller bearings offer a more efficient balance between compact structure, load capacity, and precision performance. They help engineers simplify mechanical design, reduce system size, and improve operational accuracy without compromising durability.

For industries that prioritize precision, stability, and long-term reliability, CRBH bearings provide a proven engineering solution that supports advanced motion control requirements.

If your application demands high rigidity, compact design, and precise rotational control, CRBH type crossed roller bearings represent a dependable choice for modern industrial systems.

FAQs

CRBH type crossed roller bearing is a high-precision bearing designed with cylindrical rollers arranged in a crossed 90-degree configuration. This structure allows a single bearing to support radial load, axial load, and moment load simultaneously, making it suitable for compact and high-rigidity mechanical systems.

2. How is CRBH different from standard roller bearings?

Unlike standard bearings that typically handle one or two load directions, CRBH bearings are engineered to handle multi-directional loads within one integrated structure. The crossed roller arrangement also improves stiffness and rotational accuracy, which is essential for precision equipment.

3. What applications commonly use CRBH crossed roller bearings?

CRBH bearings are widely used in industrial robotics, CNC rotary tables, semiconductor manufacturing equipment, medical imaging systems, and precision measuring instruments. These applications require stable rotation, high accuracy, and compact installation space.

4. Why is CRBH suitable for high-precision equipment?

The bearing structure provides line contact between rollers and raceways, which reduces deformation under load and improves motion stability. This design helps maintain micron-level positioning accuracy even under continuous operation or combined loading conditions.

5. Can CRBH bearings handle heavy loads?

CRBH bearings are designed for combined loads rather than extremely heavy single-direction loads. Their strength lies in load distribution efficiency and rigidity rather than bulk load capacity, making them ideal for precision systems rather than heavy-duty mining or construction machinery.

6. Do CRBH bearings require special installation?

Yes, proper installation is important to ensure performance. Engineers must ensure that mounting surfaces are flat, rigid, and accurately aligned. Improper installation can reduce accuracy and shorten bearing service life.

7. What type of lubrication is recommended?

Both grease and oil lubrication can be used depending on operating conditions. Grease is commonly used for sealed or low-maintenance systems, while oil lubrication is preferred for high-speed or high-temperature environments.

8. How long is the service life of CRBH crossed roller bearings?

Service life depends on load conditions, installation accuracy, lubrication quality, and operating environment. When correctly installed and maintained, CRBH bearings can operate reliably for long periods in precision applications.

9. Can CRBH bearings reduce machine size?

Yes, one of the key advantages is space efficiency. Because a single CRBH bearing can replace multiple conventional bearings, it helps reduce overall system size and simplifies mechanical design.

10. What should be considered when selecting a CRBH bearing?

Engineers should consider load type, required rotational accuracy, installation space, stiffness requirements, and operating environment. Proper selection ensures optimal performance and long-term stability in the target application.
