NRE Type Crossed Roller Bearings

NRE Type Crossed Roller Bearings Overview

NRE type crossed roller bearings are engineered to provide high-precision rotational motion while maintaining exceptional rigidity and load-carrying performance in both radial and axial directions. In modern industrial equipment where positioning accuracy and structural stability are critical, this type of bearing plays a key role in ensuring smooth, controlled, and reliable motion under complex operating conditions.

Unlike conventional bearing structures, the NRE design integrates cylindrical rollers arranged in a cross configuration at right angles. This structure allows each roller to carry load from multiple directions simultaneously, which significantly improves stiffness and reduces deformation during operation. As a result, equipment using NRE type crossed roller bearings can maintain stable accuracy even under heavy load or high-speed movement.

Engineering Design and Structural Advantages

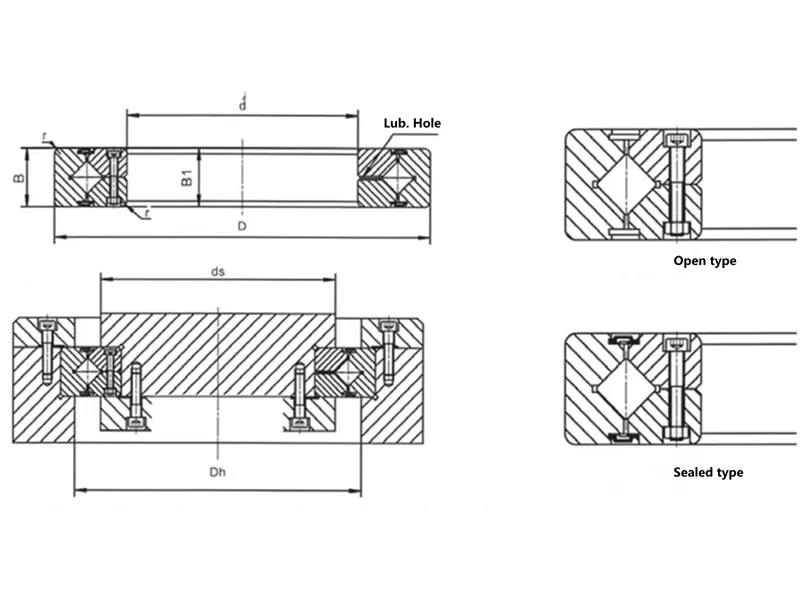

The NRE type crossed roller bearing is characterized by its compact inner and outer ring structure combined with precision-machined raceways. The rollers are alternately oriented in perpendicular directions, allowing the bearing to support radial load, axial load, and moment load within a single unit.

This integrated load-sharing capability reduces the need for multiple bearing assemblies, which simplifies machine design and improves overall system efficiency. In addition, the preload adjustment design helps minimize internal clearance, ensuring higher rotational accuracy and smoother motion response.

The bearing also demonstrates excellent rigidity due to the line-contact between rollers and raceways, making it particularly suitable for applications requiring micro-positioning or repetitive motion control.

Performance Benefits in Industrial Applications

NRE type crossed roller bearings are widely recognized for their ability to maintain high precision under demanding operational environments. Industries that require stable positioning accuracy and long service life often rely on this bearing type to enhance equipment performance.

Key performance advantages include:

High rotational accuracy suitable for precision machinery

Strong resistance to combined radial, axial, and moment loads

Compact design that reduces installation space requirements

Improved stiffness that minimizes elastic deformation

Stable operation even under continuous or fluctuating loads

These characteristics make the bearing particularly valuable in systems where accuracy loss or mechanical instability could lead to production inefficiencies or product quality issues.

Typical Application Scenarios

NRE type crossed roller bearings are commonly used in high-precision and heavy-duty mechanical systems. Their versatility allows them to perform effectively across a wide range of industries, including:

Industrial robotics and robotic arms

CNC machine tools and machining centers

Semiconductor manufacturing equipment

Precision rotary tables and indexing devices

Medical imaging and diagnostic systems

Automation and inspection equipment

In these applications, the bearing ensures smooth rotational motion while maintaining strict positional accuracy, even under continuous operation.

Why Choose NRE Type Crossed Roller Bearings

From an engineering perspective, selecting the right bearing directly impacts equipment lifespan, maintenance cost, and production accuracy. NRE type crossed roller bearings offer a balanced combination of rigidity, precision, and load capacity, making them a preferred solution for advanced mechanical systems.

Manufacturers and system designers often choose this type of bearing because it helps reduce mechanical complexity while improving overall system reliability. Its ability to handle multi-directional loads within a compact structure also contributes to space-saving machine designs, which is increasingly important in modern industrial environments.

Selection and Customization Considerations

When selecting an NRE type crossed roller bearing, engineers typically evaluate several key parameters to ensure optimal performance. These include load conditions, rotational speed, required accuracy level, and installation space limitations.

Different preload levels and dimensional configurations may also be required depending on the application. Proper selection ensures that the bearing operates within its designed performance range, reducing wear and extending service life.

For specialized applications, customization options such as material selection, sealing design, and lubrication methods may also be considered to meet specific environmental or operational requirements.

Maintenance and Service Life Optimization

Although NRE type crossed roller bearings are designed for durability, proper maintenance significantly enhances their operational lifespan. Regular lubrication, controlled operating conditions, and correct installation procedures help prevent premature wear and maintain stable performance over time.

In precision equipment, even minor contamination or misalignment can affect performance, so maintaining a clean operating environment is equally important.

Conclusion

NRE type crossed roller bearings provide a highly efficient solution for systems requiring precision rotation, high stiffness, and multi-directional load capacity. Their compact design and stable mechanical performance make them an essential component in advanced industrial machinery.

By integrating this bearing type into precision equipment, manufacturers can achieve improved motion control, higher production accuracy, and greater long-term operational reliability.
