NRB Type Crossed Roller Bearings

NRB Type Crossed Roller Bearings Overview

NRB type crossed roller bearings are engineered for applications that require extremely high rotational accuracy, compact design, and stable load performance in multiple directions. These bearings are widely used in precision machinery where both rigidity and smooth motion control are essential, such as robotics, semiconductor equipment, CNC rotary tables, medical devices, and optical instruments.

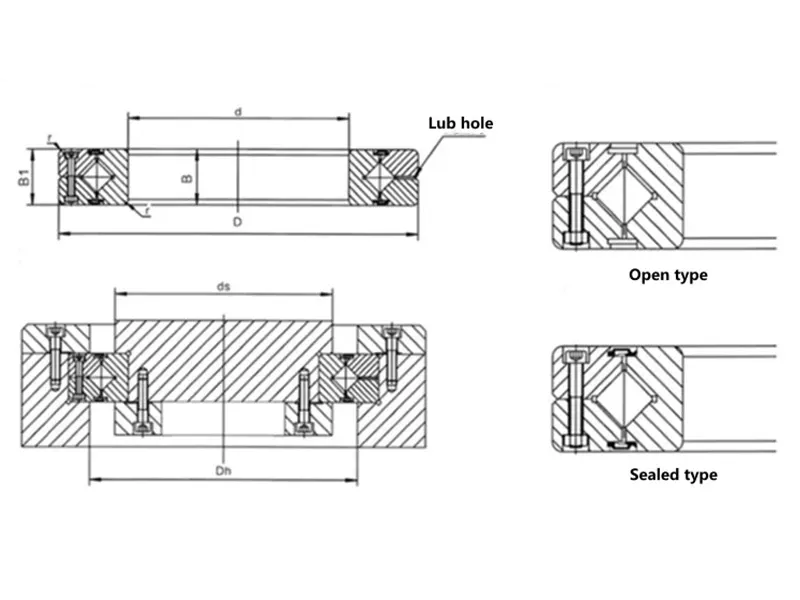

Unlike conventional bearing systems, NRB type crossed roller bearings use cylindrical rollers arranged alternately at right angles to each other between inner and outer rings. This unique 90-degree cross configuration allows a single bearing to simultaneously handle radial loads, axial loads, and moment loads, which significantly improves structural efficiency while reducing system complexity.

Advanced Structural Design for Multi-Directional Load Capacity

The core advantage of NRB Type Crossed Roller Bearings lies in their optimized roller arrangement. Each roller is separated by a spacer retainer, which maintains precise spacing and prevents roller skewing during operation. This structural design ensures uniform load distribution across the entire contact surface, resulting in higher rigidity and improved operational stability.

Because the rollers are arranged in a crossed pattern, the bearing can resist overturning moments effectively without requiring multiple bearing assemblies. This design simplifies machine structure while maintaining superior stiffness, which is particularly valuable in compact equipment designs where installation space is limited.

High Rotational Accuracy and Exceptional Rigidity

Precision is a key performance requirement in modern industrial systems, and NRB type crossed roller bearings are specifically developed to meet these demands. The internal geometry is manufactured with tight tolerances to minimize rotational error and ensure smooth motion even under heavy load conditions.

The rigid contact between rollers and raceways reduces elastic deformation, allowing the bearing to maintain stable positioning accuracy during continuous operation. This feature is especially important in applications such as robotic arms and CNC rotary tables, where even minimal deviation can affect machining accuracy or assembly precision.

Compact Design That Optimizes Equipment Space

One of the most significant advantages of NRB type crossed roller bearings is their compact form factor. Since a single bearing can replace multiple conventional bearing units, equipment designers can reduce the overall size and weight of mechanical systems.

This compact structure does not compromise performance. Instead, it enhances system integration by allowing more flexible mechanical layouts. Engineers often choose this bearing type when designing high-density automation equipment or precision positioning systems where space optimization is a critical factor.

Smooth Motion Performance with Low Friction Characteristics

NRB type crossed roller bearings are designed to maintain smooth and stable rotational movement even under varying load conditions. The rolling contact between cylindrical rollers and precision-ground raceways minimizes frictional resistance, which helps reduce energy consumption and heat generation during operation.

The controlled contact geometry also ensures consistent torque characteristics, which improves motion responsiveness in servo-driven systems. This makes the bearing suitable for applications requiring precise angular positioning and repeatable motion control.

Wide Range of Industrial Applications

NRB type crossed roller bearings are used across multiple high-tech and heavy-duty industries due to their versatility and reliability. Common applications include:

Industrial robotics and robotic arm joints

CNC machine tool rotary tables and indexing units

Semiconductor manufacturing equipment

Medical imaging and surgical devices

Precision measuring instruments

Radar and optical tracking systems

Automation assembly lines

Each of these applications requires a combination of accuracy, stiffness, and durability, which this bearing type is specifically designed to deliver.

Material Quality and Manufacturing Precision

The performance of NRB type crossed roller bearings is closely linked to material selection and manufacturing accuracy. High-carbon chromium bearing steel is typically used to ensure excellent hardness, wear resistance, and fatigue life. The raceways are precision ground and heat-treated to achieve optimal surface integrity and dimensional stability.

Advanced manufacturing processes help maintain consistent roller geometry and surface finish, which directly improves load distribution and reduces operational wear. These quality controls ensure long service life even under continuous heavy-duty operation.

Installation Considerations and Maintenance Requirements

Proper installation plays a critical role in maximizing the performance of NRB type crossed roller bearings. Engineers typically ensure that mounting surfaces are highly flat and rigid to avoid deformation during tightening. Correct preload adjustment is also essential to achieve optimal stiffness and rotational smoothness.

Although these bearings are designed for long-term operation, periodic inspection and appropriate lubrication are recommended to maintain performance stability. Proper lubrication reduces wear, prevents contamination damage, and extends service life in demanding environments.

Why Choose NRB Type Crossed Roller Bearings

Industries choose NRB type crossed roller bearings because they combine multiple performance advantages into a single compact component. The ability to handle complex load conditions while maintaining high precision makes them a cost-effective solution for advanced mechanical systems.

Their structural efficiency reduces the need for additional support components, which simplifies machine design and lowers overall system maintenance requirements. At the same time, their durability ensures consistent performance in continuous operation environments.

Conclusion

NRB type crossed roller bearings represent a high-performance engineering solution designed for modern precision machinery. Their unique cross roller structure, high rigidity, compact design, and multi-directional load capacity make them an essential component in applications where accuracy and reliability cannot be compromised.

For manufacturers seeking to improve mechanical efficiency, reduce system complexity, and enhance operational precision, this bearing type offers a proven and dependable solution that aligns with the demands of advanced industrial automation and high-precision equipment design.
